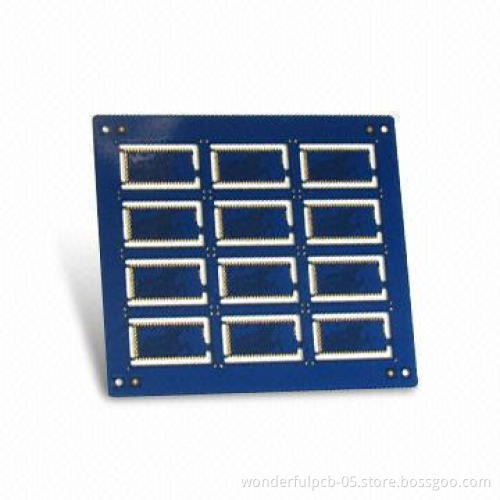

PCBA for CCTV Fields with 580 x 900mm Maximum Finished Board Size

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Applicable for CCTV fields

Minimum size: 0.3mm

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free

Maximum finished board size: 580 x 900mm

Minimum drilled hole size: 0.075mm

Minimum line width: 0.075mm

Minimum line spacing: 0.075mm

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0 oz

Solder mask color: green/yellow/black/white/red/blue

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

OEM services are welcomed

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.

PTH: ±0.076

NPTH: ±0.05
