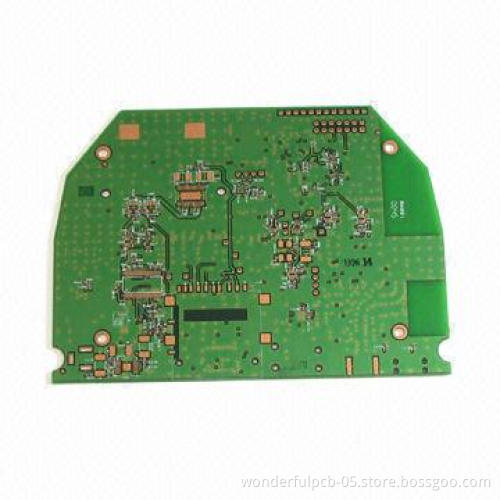

PCB with Rogers and FR-4 Base, 3.0mm, Electronic Board, Multilayer PCB Assembly, Double Sided PCB

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Key specifications:

Base materials: rogers + FR-4
Board thickness: 3.0mm
Minimum line width: 6 mils
Minimum spacing: 5 mils
Copper: 50¼m
Minimum hole size: 0.3mm
Layer counts: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 Halogen free androgers
Finishing board size: 23 x 25 (580mm) (maximum)
Drilled hole size: 3 mils (0.075mm) (minimum)
Line width: 3 mils (0.075mm) (minimum)
Line spacing: 3 mils (0.075mm) (minimum)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
Copper thickness: 0.5 to -7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (>1 mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Certificate: UL
Special requirements: buried and blind vias + controlledimpedance + BGA
Profiling: punching, routing, V-CUT and beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.

Base materials: rogers + FR-4

Board thickness: 3.0mm

Minimum line width: 6 mils

Minimum spacing: 5 mils

Copper: 50¼m

Minimum hole size: 0.3mm

Layer counts: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 Halogen free androgers

Finishing board size: 23 x 25 (580mm) (maximum)

Drilled hole size: 3 mils (0.075mm) (minimum)

Line width: 3 mils (0.075mm) (minimum)
