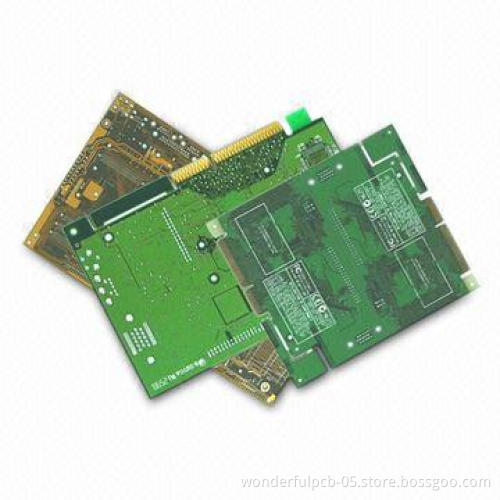

Multilayer PCBs with 0.5 to 7.0oz Copper Thickness and Gold Plating
  • Multilayer PCBs with 0.5 to 7.0oz Copper Thickness and Gold Plating
Multilayer PCBs with 0.5 to 7.0oz Copper Thickness and Gold Plating

Multilayer PCBs with 0.5 to 7.0oz Copper Thickness and Gold Plating

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Multilayer PCB:
    • Immersion gold and gold finger
    • 6 layers of printed circuit board
    • Material: FR-4 2mm 2/2oz
    • Min line width/space: 0.2/0.18mm
  • Reference: our production capability for rigid PCB:
    • Layer: 1 to 28
    • Board finished thickness: 0.21 to 7.0mm
    • Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
    • Maximum finished board size: 23 x 25 (580 x 900mm)
    • Minimum drilled hole size: 3mil (0.075mm)
    • Minimum line width: 3mil (0.075mm)
    • Minimum line spacing: 3mil (0.075mm)
    • Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
    • Copper thickness: 0.5 to 7.0oz
    • Solder mask color: green/yellow/black/white/red/blue
    • Copper thickness in hole: >25.0um (>1mil)
    • Inner packing: vacuum packing/plastic bag
    • Outer packing: standard carton packing
    • Shape tolerance: ±0.13
    • Hole tolerance: PTH: ±0.076, NPTH: ±0.05
    • Certificates: UL, ISO 9001, ISO 14001
    • Special requirements: buried and blind vias + controlledimpedance + BGA
    • Profiling: punching, routing, V-cut, beveling
  • Immersion gold and gold finger
  • 6 layers of printed circuit board
  • Material: FR-4 2mm 2/2oz
  • Min line width/space: 0.2/0.18mm
  • Layer: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Material: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
  • Maximum finished board size: 23 x 25 (580 x 900mm)
  • Minimum drilled hole size: 3mil (0.075mm)
  • Minimum line width: 3mil (0.075mm)
  • Minimum line spacing: 3mil (0.075mm)
  • Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0um (>1mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance: PTH: ±0.076, NPTH: ±0.05
  • Certificates: UL, ISO 9001, ISO 14001
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-cut, beveling
