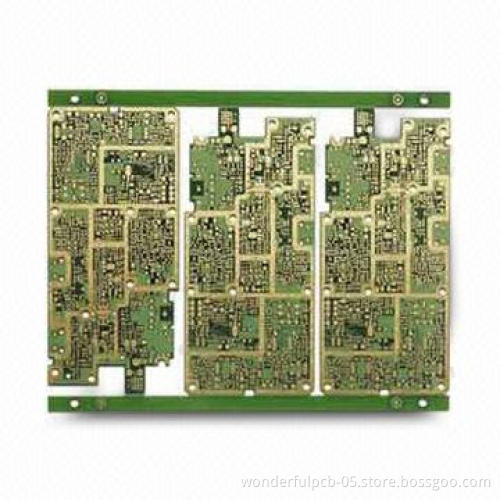

Electronic Circuit, Copper Thickness of 0.5 to 7.0oz, Used for Computers and More

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Electronic circuit widely used for communications,computers

Reference: our production capability for rigid PCB:

Layers: 1 to 28
Board finished thickness: 0.2 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
Maximum finished board size: 23 x 25 (580 x 900mm)
Minimum drilled hole size: 3mil (0.075mm)
Minimum line width: 3mil (0.075mm)
Minimum line spacing: 3mil (0.075mm)
Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0µm (>1mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±0.13
Hole tolerance: PTH: ±0.076, NPTH: ±0.05
Certificates: UL, ISO 9001, ISO 14001, SGS, RoHS
Special requirements: buried and blind vias + controlledimpedance +BGA
Profiling: punching, routing, V-cut, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
