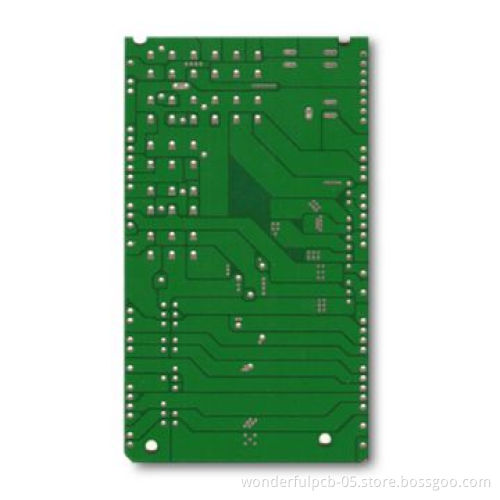

Immersion Gold Double-sided PCB for Wireless Phone with >6H Solder Mask Abrasion, Multilayer PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Immersion gold finished

PTH hole diameter tolerance: 3mil

NPTH hole diameter tolerance: 2mil

Hole position deviation: 2mil

Outline tolerance: 4mil

S/M pitch: 4mil (minimum)

Solder mask abrasion: >6H

Twist and bent: ≤1.0%

Peel off strength: 1.4N/mm

E-test voltage: 50 to 300V

Flammability: 94V-O

Excellent PCB board manufacturer in China

Our fabrication capacity for PCB:

Layer counts: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Material: FR-4, CEM-1, CEM-3, High TG, FR4 halogen free,rogers
Finished board size: 23 x 25 (580mm) (maximum)
Drilled hole size: 3mil (0.075mm) (minimum)
Line width: 3mil (0.075mm) (minimum)
Line spacing: 3mil (0.075mm) (minimum)
Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold
Immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0 OZ
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (>1mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±.13
Hole tolerance: PTH: ±.076 NPTH: ±.05
Special requirements: buried and blind vias + controlledimpedance +BGA
Profiling: punching, routing, V-CUT, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
