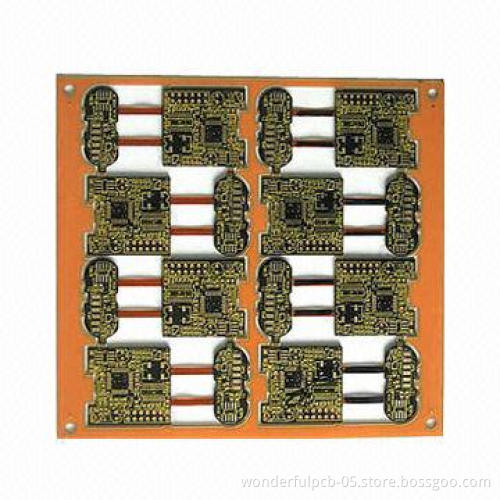

Multilayer PCB, Made of FR-4 Material, with ENIG Surface Finish
  • Multilayer PCB, Made of FR-4 Material, with ENIG Surface Finish
Multilayer PCB, Made of FR-4 Material, with ENIG Surface Finish

Multilayer PCB, Made of FR-4 Material, with ENIG Surface Finish

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Material: FR-4
  • Layer: two
  • Copper thickness: 1oz
  • Solder mask: green
  • Silkscreen: white
  • Surface finish: ENIG
  • Buried and blind hole: not supported
  • Application: gas detector, remote control, telecommunicationproducts
  • Our production capability for rigid PCB:
    • Layers: 1 to 28
    • Board finished thickness: 0.2 to 7.0mm
    • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free andRogers
    • Maximum finished board size: 23 x 25 inches (580 x 900mm)
    • Minimum drilled hole size: 3mil (0.075mm)
    • Minimum line width: 3mil (0.075mm)
    • Minimum line spacing: 3mil (0.075mm)
    • Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
    • Copper thickness: 0.5 to 7.0oz
    • Solder mask colors: green, yellow, black, white, red andblue
    • Copper thickness in hole: >25.0µm (>1mil)
    • Inner packing: vacuum packing/plastic bag
    • Outer packing: standard carton
    • Shape tolerance: ±0.13
    • Tolerance:
      • PTH: ±0.076
      • NPTH: ±0.05
    • With UL, ISO 9001, ISO 14001, SGS and RoHS marks
    • Special requirements: buried and blind vias + controlledimpedance + BGA
    • Profiling: punching, routing, V-cut and beveling
    • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • Layers: 1 to 28
  • Board finished thickness: 0.2 to 7.0mm
  • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free andRogers
  • Maximum finished board size: 23 x 25 inches (580 x 900mm)
  • Minimum drilled hole size: 3mil (0.075mm)
  • Minimum line width: 3mil (0.075mm)
  • Minimum line spacing: 3mil (0.075mm)
  • Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP and goldplating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask colors: green, yellow, black, white, red andblue
  • Copper thickness in hole: >25.0µm (>1mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton
  • Shape tolerance: ±0.13
  • Tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • With UL, ISO 9001, ISO 14001, SGS and RoHS marks
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-cut and beveling
  • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • PTH: ±0.076
  • NPTH: ±0.05
