High-density Multilayer PCB with Copper Thickness of 0.5 to 7.0oz, Used for MP3 Players

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

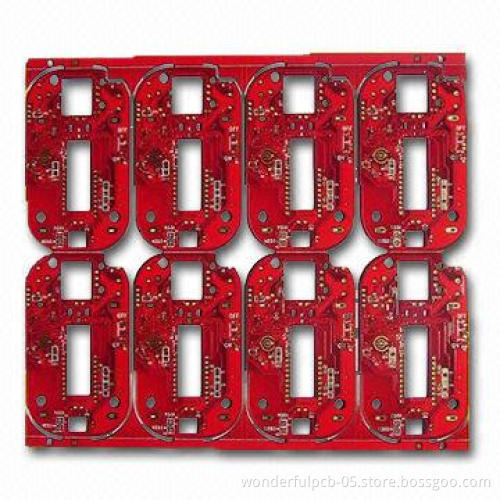

Four-layered red solder-mask used for MP3 players

Reference: our production capability for rigid PCB

Board finished thickness: 0.21 to 7.0mm

Materials: FR4, CEM-1, CEM-3, high TG, FR4 halogen free, andRogers

Finished board size: 23 x 25 (580 x 900mm)

Drilled hole size: 3 mils (0.075mm)

Line width: 3 mils (0.075mm)

Line spacing: 3 mils (0.075mm)

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0m (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

PTH: ±0.076
NPTH: ±0.05

Profiling: punching, routing, v-cut, and beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.

PTH: ±0.076

NPTH: ±0.05
