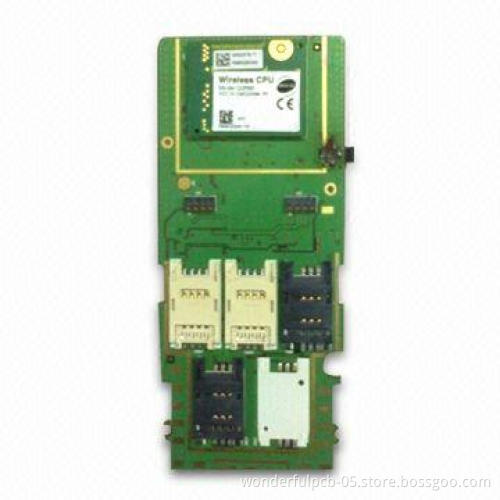

Multilayer PCB with 0.21 to 7.0mm Board Finished Thickness and Gold Plating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Suitable for industrial controls and computers

Layers: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androger

Maximum finished board size: 23 x 25mm (580 x 900mm)

Minimum drilled hole size: 3 mils (0.075mm)

Minimum line width: 3 mils (0.075mm)

Minimum line spacing: 3 mils (0.075mm)

Surface finish/treatment: HASL, lead free HASL, HAL chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0um (>1 mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

Certification: UL

Special requirements: buried and blind via + controlledimpedance + BGA

Profiling: punching and routing, V-cut and beveling

OEM orders are welcomed

PTH: ±0.076

NPTH: ±0.05
