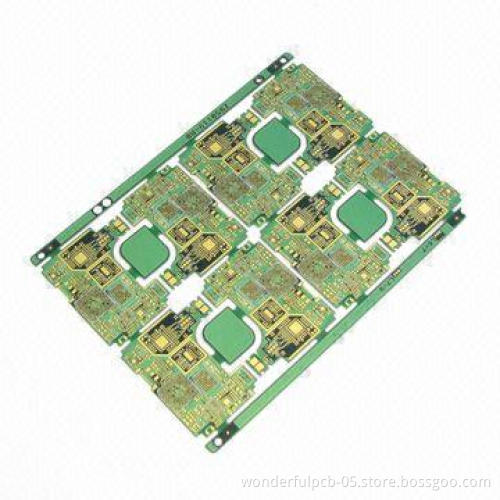

6-layerd High Density Electronic PCB, Made of 2.4mm, FR4, TG-170, 2oz Copper, ENIG Finish

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Layers: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Materials: FR-4, CEM-1,CEM-3, high TG, FR4 halogen free,rogers

Maximum finished board size: 23 x 25mm (580 x 900mm)

Minimum drilled hole size: 3-mil (0.075mm)

Minimum line width: 3-mil (0.075mm)

Minimum line spacing: 3-mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0um (>1-mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance: PTH of ±0.076, NPTH of ±0.05

Certificate: UL

Special requirements: buried and blind vias + controlledimpedance + BGA

Profiling: punching, routing, V-CUT, beveling

Disclaimer: All trademarks shown here are for referencepurposes only. They are the property of their respective owners,and we are not authorized to sell items bearing suchtrademarks.
