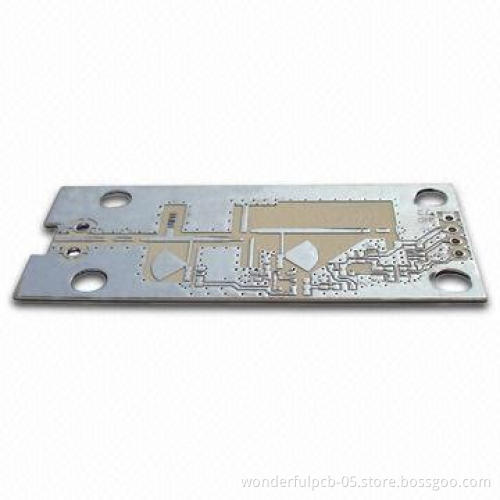

Rogers PCB with HASL Surface Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash on Delivery (COD)

Product Description

Wonderful-Rogers PCB

Key specifications:

Material: Rogers

Layer: double

Copper thickness: 1oz

Soldermask: green

Silkscreen: white

Surface finish: HASL

Buried and blind hole: no

Application: gas detector, remote control, telecommunicationproducts

Reference - our production capability for rigid PCB:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers

Max. finished board size: 23 x 25 (580 x 900mm)

Min. drilled hole size: 3mil (0.075mm)

Min. line width: 3mil (0.075mm)

Min. line spacing: 3mil (0.075mm)

Surface finish/treatment : HASL / HASL lead free,HAL, Chemicaltin,Chemical Gold,

Immersion Silver/Gold,OSP,Gold plating

Copper thickness: 0.5-7.0 OZ

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: Vacuum packing / Plastic bag

Outer packing: Standard carton packing

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate: UL, ISO 9001, ISO 14001,SGS , RoHS

Special requirements: buried and blind Vias + controlledimpedance + BGA

Profiling: Punching, Routing, V-CUT, Beveling

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
