Double-sided PCB with Green Solder-mask and 0.21 to 7.0mm Board Finished Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

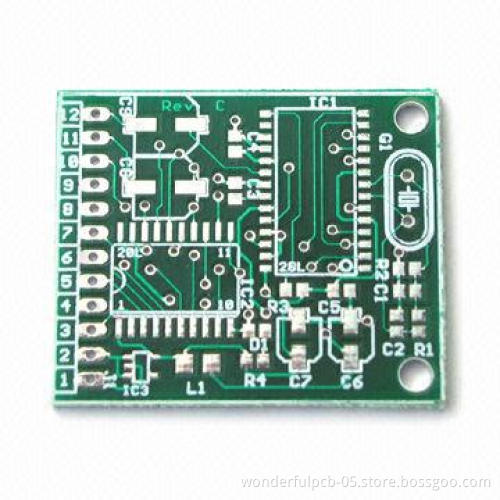

Double-sided PCB with green solder-mask immersion silver

Key specifications:

Reference: our production capability for rigid PCB

Layer: 1 to 28

Board finished thickness: 0.21 to 7.0mm

Material: Fr4, CEM1, CEM3, high TG, Fr4 halogen-free androgers

Maximum finished board size: 23 x 25mm (580 x 900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green, yellow, black, white, red andblue

Copper thickness in hole: >25.0cm (>1mil)

Inner packing: vacuum packing and plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Material: Fr4

Layer: 2

Copper thickness: 1oz

Solder-mask: green

Silkscreen: white

Surface finish: immersion silver

Board size: 80 x 76mm

Applications: gas detectors, remote controls andtelecommunication products
