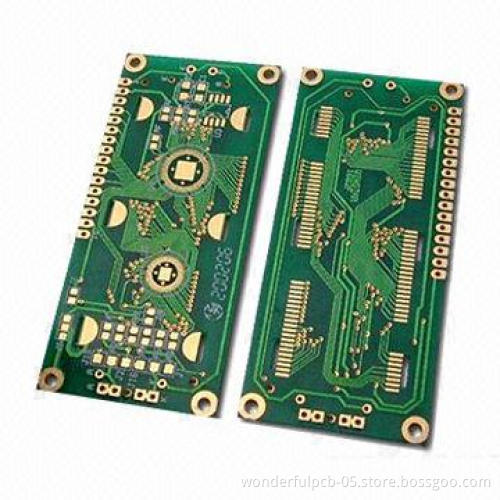

PCBs with Copper Thickness of 0.5 to 7.0oz, Made of FR-4 Material, Available in Various Colors
  • PCBs with Copper Thickness of 0.5 to 7.0oz, Made of FR-4 Material, Available in Various Colors
PCBs with Copper Thickness of 0.5 to 7.0oz, Made of FR-4 Material, Available in Various Colors

PCBs with Copper Thickness of 0.5 to 7.0oz, Made of FR-4 Material, Available in Various Colors

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Key specifications:
    • Material: FR-4
    • Layers: 2
    • Copper thickness: 3oz
    • Solder-mask: yellow
    • Silkscreen: black
    • Surface finish: HASL lead-free
    • Applications: gas detectors, remote controls, telecommunicationproducts
  • Reference: our production capability for rigid PCB
  • Layers: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Materials: FR-4, CEM-1, CEM-3, high TG, FR-4 halogen-free,Rogers
  • Maximum finished board size: 23 x 25-inch (580 x 900mm)
  • Minimum drilled hole size: 3 mils (0.075mm)
  • Minimum line width: 3 mils (0.075mm)
  • Minimum line spacing: 3 mils (0.075mm)
  • Surface finish/treatment: HASL/HASL lead-free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP, and goldplating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0cm (>1 mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • Certificate: UL, ISO 9001, and ISO 14001
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-cut, and beveling
  • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • Material: FR-4
  • Layers: 2
  • Copper thickness: 3oz
  • Solder-mask: yellow
  • Silkscreen: black
  • Surface finish: HASL lead-free
  • Applications: gas detectors, remote controls, telecommunicationproducts
  • PTH: ±0.076
  • NPTH: ±0.05
