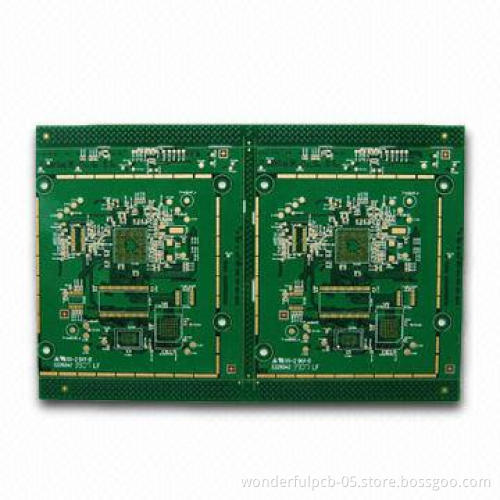

Gold Finger Double-sided PCB with Green Solder Mask and ENIG Surface Finish, RoHS Approved

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash on Delivery (COD)

Product Description

Gold finger PCBs with reen solder mask

Key specifications:

Material: FR4

Layer: 2 layers

Copper thickness: 1oz

Solder mask: green

Silkscreen: white

Surface finish: ENIG

Buried and blind hole: no

Application: gas detector, remote control, telecommunicationproducts

Our production capability for rigid PCBs:

Layers: 1 to 28

Board finished thickness: 0.2 to 7.0mm

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,Rogers

Maximum finished board size: 23 x 25 (580 x 900mm)

Minimum drilled hole size: 3mil (0.075mm)

Minimum line width: 3mil (0.075mm)

Minimum line spacing: 3mil (0.075mm)

Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, and chemical gold

Immersion: silver/gold, OSP, gold plating

Copper thickness: 0.5 to 7.0oz

Solder mask color: green/yellow/black/white/red/blue

Copper thickness in hole: >25.0µm (>1mil)

Inner packing: vacuum packing/plastic bag

Outer packing: standard carton packing

Shape tolerance: ±0.13

Hole tolerance:

Certificate: UL, ISO:9001, ISO:14001, SGS, RoHS

Special requirements: buried and blind via + controlledimpedance + BGA

Profiling: punching, routing, V-cut, and beveling

PTH: ±0.076

NPTH: ±0.05

Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
