Buletooth PCB with 0.5 to 7.0oz Copper Thickness and Blue Solder Mask
  • Buletooth PCB with 0.5 to 7.0oz Copper Thickness and Blue Solder Mask
Buletooth PCB with 0.5 to 7.0oz Copper Thickness and Blue Solder Mask

Buletooth PCB with 0.5 to 7.0oz Copper Thickness and Blue Solder Mask

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description

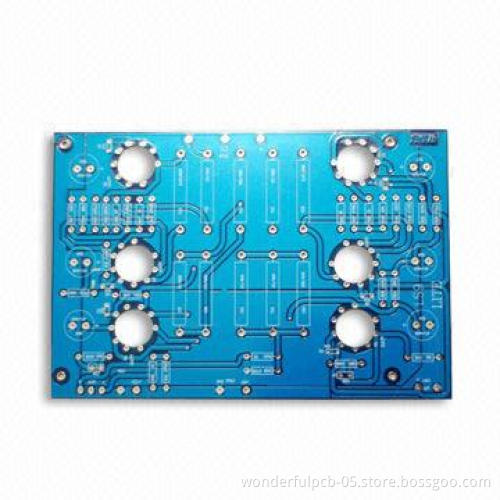

  • Bluetooth PCB with blue solder mask
  • Key specifications:
    • Material: FR-4
    • Layer: 2
    • Copper thickness: 1oz
    • Solder mask: blue
    • Silkscreen: white
    • Surface finish: HASL lead-free
    • Buried and blind hole: not supported
    • Applications: gas detector, remote control, telecommunicationproducts
  • Reference: our production capability for rigid PCBs
  • Layer: 1 to 28
  • Board finished thickness: 0.21 to 7.0mm
  • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free,rogers
  • Maximum finished board size: 23 x 25 (580 x 900mm)
  • Minimum drilled hole size: 3mm (0.075mm)
  • Minimum line width: 3mm (0.075mm)
  • Minimum line spacing: 3mm (0.075mm)
  • Surface finish/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver, gold, OSP and goldplating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green/yellow/black/white/red/blue
  • Copper thickness in hole: >25.0um (>1mm)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • Certificate: UL, ISO 9001 and ISO 14001
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-cut and beveling
  • Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products
  • Bluetooth and the Bluetooth logo are registeredtrademarks of the Bluetooth SIG
  • Material: FR-4
  • Layer: 2
  • Copper thickness: 1oz
  • Solder mask: blue
  • Silkscreen: white
  • Surface finish: HASL lead-free
  • Buried and blind hole: not supported
  • Applications: gas detector, remote control, telecommunicationproducts
  • PTH: ±0.076
  • NPTH: ±0.05
