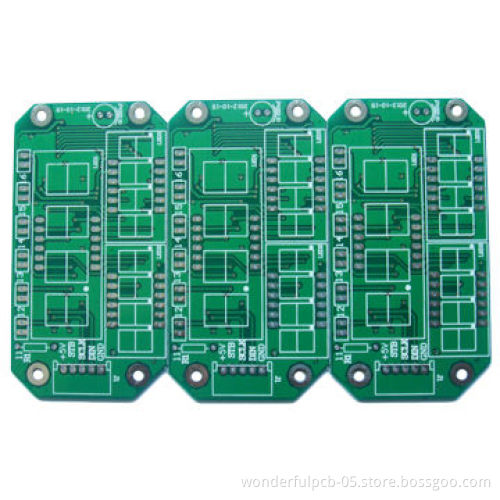

LCD PCB, Used for LCD Monitors and LCD TV Sets, Circuit Boards, PCB Designs, Rigid PCB LEDs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Double-sided PCBs for electric appliances
Any other kinds PCBs from 1 to 16 is specializing in high-techmultilayer
Large production capability
In-house PCB R/D center
Quick turn-around
Our fabrication capacity for rigid PCB:
- Layer counts: 1 to 28
- Board finished thickness: 0.21 to 7.0mm
- Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
- Maximum finished board size: 23 x 25 (580mm)
- Minimum drilled hole size: 3-mil (0.075mm)
- Minimum line width: 3-mil (0.075mm)
- Minimum line spacing: 3-mil (0.075mm)
- Surface finishing/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
- Copper thickness: 0.5 to 7.0oz
- Solder mask color: green/yellow/black/white/red/blue
- Copper thickness in hole: >25.0um (>1-mil)
Inner packing: vacuum packing/plastic bag
Outer packing: standard carton packing
Shape tolerance: ±13
Hole tolerance:
- PTH: ±.076
- NPTH: ±.05
With UL approval
Special requirements: buried and blind vias + controlledimpedance + BGA
Profiling: punching, routing, V-cut, beveling
Provides OEM services to all sorts of printed circuit boardassembly as well as electronic encased products

For these electric applications:

Double-sided PCBs for electric appliances

Any other kinds PCBs from 1 to 16 is specializing in high-techmultilayer

Large production capability

In-house PCB R/D center

Quick turn-around

Our fabrication capacity for rigid PCB:

Layer counts: 1 to 28
Board finished thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free,rogers
Maximum finished board size: 23 x 25 (580mm)
Minimum drilled hole size: 3-mil (0.075mm)
Minimum line width: 3-mil (0.075mm)
Minimum line spacing: 3-mil (0.075mm)
Surface finishing/treatment: HASL/HASL lead free, HAL, chemicaltin, chemical gold, immersion silver/gold, OSP, gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask color: green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (>1-mil)
