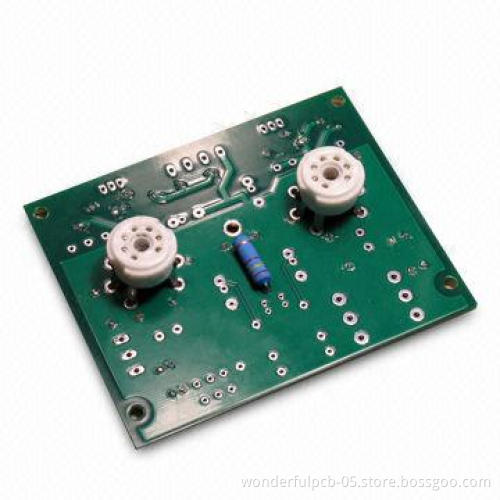

PCB with 1 to 28 Layers, OEM Orders are Welcome

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Capability for rigid PCB:

Layers: 1 to 28
Board finishing thickness: 0.21 to 7.0mm
Materials: FR-4, CEM-1, -3, high TG and FR4 halogen free,rogers
Minimum drilled hole size: 3 mil (0.075mm)
Minimum line width: 3 mil (0.075mm)
Minimum line spacing: 3 mil (0.075mm)
Surface finishing treatment: HASL/HASL lead-free, HAL, chemicaltin/gold, immersion silver, OSP and gold plating
Copper thickness: 0.5 to 7.0oz
Solder mask colors: green, yellow, black, white, red andblue
Copper thickness in hole: >25.0um (>1 mil)
Inner packing: vacuum/plastic bag
Outer packing: standard carton
Shape tolerance: ±0.13
Hole tolerance:
- PTH: ±0.076
- NPTH: ±0.05
Maximum finishing board size: 23 x 25 (580 x 900mm)
OEM orders are welcome
Special requirements: buried and blind vias and controlledimpedance, BGA
Profiling: punching, routing, V-cut and beveling
