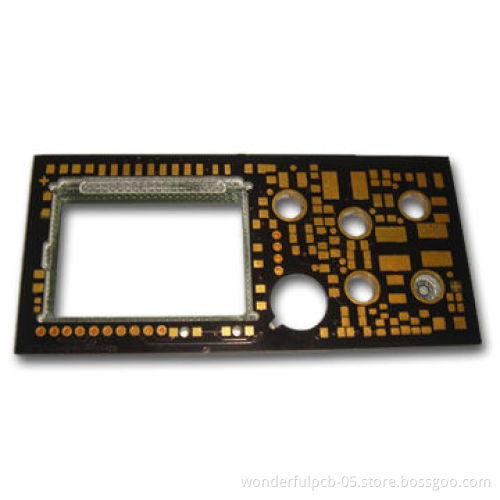

Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights
  • Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights
  • Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights
Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights
Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights

Aluminum Base PCB with 0.5 to 7.0oz Copper Thickness, Used for LED Lights

Get Latest Price
Payment Type:
Paypal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Paypal
Product Description
Product Description
  • Material: aluminum
  • Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen free androgers
  • Layer: single
  • Copper thickness: 1oz
  • Solder mask: green
  • Silkscreen: white
  • Surface finish: HASL
  • Used for LED lights for high temperature
  • Capability for rigid PCB:
    • Layers: 1 to 28
    • Board finished thickness: 0.2 to 7.0mm
    • Maximum finished board size: 23 x 25 (580 x 900mm)
    • Minimum drilled hole size: 3mil (0.075mm)
    • Minimum line width: 3mil (0.075mm)
    • Minimum line spacing: 3mil (0.075mm)
    • Surface finish: HASL/HASL lead-free, HAL, chemical tin,chemical gold, immersion silver/gold, OSP and gold plating
    • Copper thickness: 0.5 to 7.0oz
    • Solder mask color: green, yellow, black, white, red orblue
    • Copper thickness in hole: more than 25.0μm (more than1mil)
    • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • UL-, ISO 9001-, ISO 14001-, SGS- and RoHS-certified
  • Special requirements: buried and blind Vias, controlledimpedance and BGA
  • Profiling: punching, routing, v-cut and beveling
  • Layers: 1 to 28
  • Board finished thickness: 0.2 to 7.0mm
  • Maximum finished board size: 23 x 25 (580 x 900mm)
  • Minimum drilled hole size: 3mil (0.075mm)
  • Minimum line width: 3mil (0.075mm)
  • Minimum line spacing: 3mil (0.075mm)
  • Surface finish: HASL/HASL lead-free, HAL, chemical tin,chemical gold, immersion silver/gold, OSP and gold plating
  • Copper thickness: 0.5 to 7.0oz
  • Solder mask color: green, yellow, black, white, red orblue
  • Copper thickness in hole: more than 25.0μm (more than1mil)
  • Shape tolerance: ±0.13
  • PTH: ±0.076
  • NPTH: ±0.05
  • OEM services are welcome
  • Applications: gas detector, remote control, andtelecommunication products
  • Packing:
  • Inner: vacuum or plastic bag
  • Outer: standard carton
