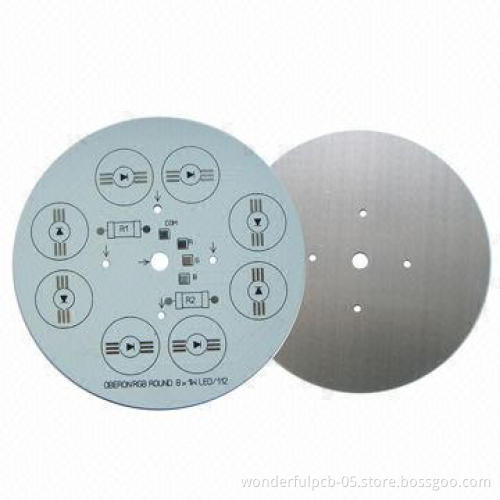

Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights
  • Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights
  • Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights
Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights
Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights

Aluminum Round PCBs with 1.60mm Board Thickness, Sized 112mm, LF-HAL, Used for LED Lights

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Material: aluminium
  • Layer: single layer
  • Board finished thickness: 1.60mm
  • Maximum finished board size: 23 × 25cm (580 x 900mm)
  • Minimum drilled hole size: 3 mils (0.075mm)
  • Minimum line width: 3 mils (0.075mm)
  • Minimum line spacing: 3 mils (0.075mm)
  • Surface finish/treatment: HASL lead-free
  • Copper thickness: 1oz
  • Solder mask color: white
  • Copper thickness in hole: >25.0um (>1 mil)
  • Inner packing: vacuum packing/plastic bag
  • Outer packing: standard carton packing
  • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • Certificate: UL
  • Special requirements: buried and blind vias + controlledimpedance + BGA
  • Profiling: punching, routing, V-cut, beveling
  • PTH: ±0.076
  • NPTH: ±0.05
