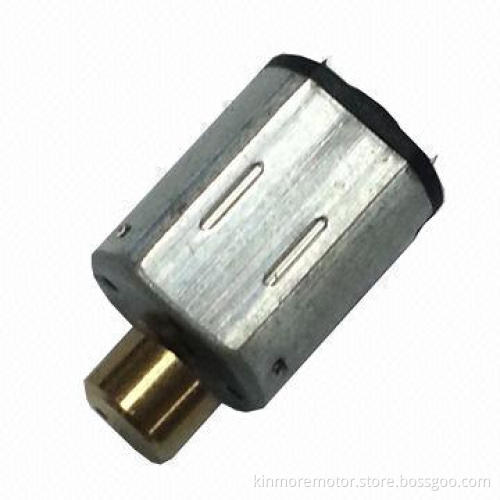

1.5V DC Vibration Motor for Sex Machines with 0.05 to 0.35mm End Play
  • 1.5V DC Vibration Motor for Sex Machines with 0.05 to 0.35mm End Play
1.5V DC Vibration Motor for Sex Machines with 0.05 to 0.35mm End Play

1.5V DC Vibration Motor for Sex Machines with 0.05 to 0.35mm End Play

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Specifications:
    • Measuring conditions:
      • Rated voltage: 1.5V DC
      • Environmental temperature: 5 to 35°C
      • Environmental humidity range: 40 to 85% RH
      • Motor position: motor to be held with shaft horizontally
    • Electrical characteristics (at initial stage after 30 secondsrun-in):
      • Torque: 6.0 x 4.0mm copper vibrator
      • Current: 450mA (maximum)
      • Speed: 14,000 ± 10%rpm
      • Stall current: d2,100mA
      • Start voltage: d0.6V
      • Insulation resistance: e1M Ohms, measured between motorterminals and motor metal housing with 100V DC
      • Direction of rotation: CW when viewing motor output side withpositive voltage applied to positive (red) terminal
    • Mechanical characteristics:
      • Operating temperature: -10 to 60°C
      • End play: 0.05 to 0.35mm
      • Noise: d55dB (distance: 10cm, background noise: d26dB)
  • Customized options:
    • OEM and customized orders are accepted
    • With the RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degrees of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small TM)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin base commentator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Applications:
    • Home appliances
    • Power tools
    • Toys and models
    • Precision instruments
    • Office equipment
    • Personal care products
    • Automotive
    • Audio and visual equipment and more
  • Measuring conditions:
    • Rated voltage: 1.5V DC
    • Environmental temperature: 5 to 35°C
    • Environmental humidity range: 40 to 85% RH
    • Motor position: motor to be held with shaft horizontally
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • Torque: 6.0 x 4.0mm copper vibrator
    • Current: 450mA (maximum)
    • Speed: 14,000 ± 10%rpm
    • Stall current: d2,100mA
    • Start voltage: d0.6V
    • Insulation resistance: e1M Ohms, measured between motorterminals and motor metal housing with 100V DC
    • Direction of rotation: CW when viewing motor output side withpositive voltage applied to positive (red) terminal
  • Mechanical characteristics:
    • Operating temperature: -10 to 60°C
    • End play: 0.05 to 0.35mm
    • Noise: d55dB (distance: 10cm, background noise: d26dB)
  • Rated voltage: 1.5V DC
  • Environmental temperature: 5 to 35°C
  • Environmental humidity range: 40 to 85% RH
  • Motor position: motor to be held with shaft horizontally
  • Torque: 6.0 x 4.0mm copper vibrator
  • Current: 450mA (maximum)
  • Speed: 14,000 ± 10%rpm
  • Stall current: d2,100mA
  • Start voltage: d0.6V
  • Insulation resistance: e1M Ohms, measured between motorterminals and motor metal housing with 100V DC
  • Direction of rotation: CW when viewing motor output side withpositive voltage applied to positive (red) terminal
  • Operating temperature: -10 to 60°C
  • End play: 0.05 to 0.35mm
  • Noise: d55dB (distance: 10cm, background noise: d26dB)
  • OEM and customized orders are accepted
  • With the RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degrees of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small TM)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin base commentator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Home appliances
  • Power tools
  • Toys and models
  • Precision instruments
  • Office equipment
  • Personal care products
  • Automotive
  • Audio and visual equipment and more
