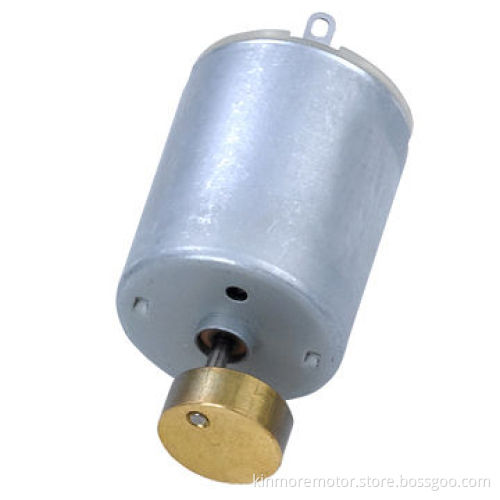

Vibrating motor with counterweight used for massager and car power seat

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Diameter: 24.0mm
Length: 30.6mm

Technical data:

Voltage: operating range: 3.0-6.0V
Nominal voltage:6V
No load speed: 14,000rpm
No load current: 236mA
Load: R13*6mm copper vibrator
At max. efficiency speed: 11,948rpm
At max. efficiency current: 1.374A
At max. efficiency torque: 4.31mNm/44g.cm
At max. efficiency output: 0.55W
Stall torque: 29.4mNm/299.9g.cm
Stall current: 8A

Features:

Copper eccentric wheel
Carbon brush
Plastic end cap
Carbon steel shaft

Typical applications:

Massager
Car power seat

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicone-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 + fiber end cap

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Diameter: 24.0mm

Length: 30.6mm

Voltage: operating range: 3.0-6.0V

Nominal voltage:6V

No load speed: 14,000rpm

No load current: 236mA

Load: R13*6mm copper vibrator

At max. efficiency speed: 11,948rpm

At max. efficiency current: 1.374A

At max. efficiency torque: 4.31mNm/44g.cm

At max. efficiency output: 0.55W

Stall torque: 29.4mNm/299.9g.cm

Stall current: 8A

Copper eccentric wheel

Carbon brush

Plastic end cap

Carbon steel shaft

Massager

Car power seat

OEM orders and customized designs are accepted

With the RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commutator

Copper-graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 + fiber end cap

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque: 5g.cm - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on
