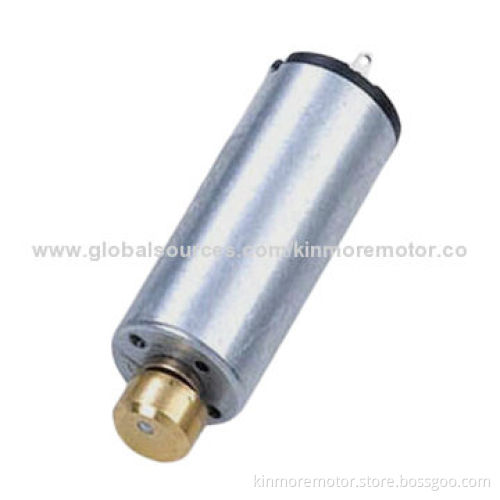

1.5V DC Small Vibration Motor with 10,800rpm Speed, for Massagers & RoHS Mark
  • 1.5V DC Small Vibration Motor with 10,800rpm Speed, for Massagers & RoHS Mark
1.5V DC Small Vibration Motor with 10,800rpm Speed, for Massagers & RoHS Mark

1.5V DC Small Vibration Motor with 10,800rpm Speed, for Massagers & RoHS Mark

Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 12 x 20mm (material: SECD)
    • Shaft (diameter): 1.5mm carbon steel (nickel coating)
    • Way of commutation: metal brush
    • Structure: 2-pole stator and 3-slot armature
    • Rotation: CW/CCW and reversible
    • Options: EMI/EMC suppression & vibration motor
  • Technical performance data:
    • Rated voltage: 1.5V DC
    • At on load:
      • Torque: R7 x 5 vibrators
      • Speed: 10,800rpm
      • Current: 0.8A
    • At stall:
      • Current: 2.3A (maximum)
    • Customized data requirements are welcomed for our engineer's evaluation
  • Applications: massagers
  • Motor housing (D x L): 12 x 20mm (material: SECD)
  • Shaft (diameter): 1.5mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression & vibration motor
  • Rated voltage: 1.5V DC
  • At on load:
    • Torque: R7 x 5 vibrators
    • Speed: 10,800rpm
    • Current: 0.8A
  • At stall:
    • Current: 2.3A (maximum)
  • Customized data requirements are welcomed for our engineer's evaluation
  • Torque: R7 x 5 vibrators
  • Speed: 10,800rpm
  • Current: 0.8A
  • Current: 2.3A (maximum)
