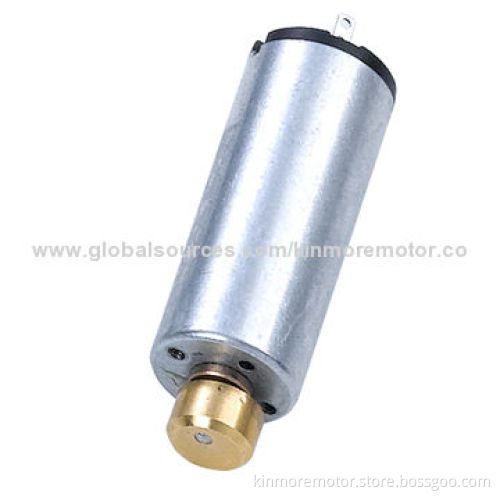

Electric Vibrator Motor for Toys with 3.0V DC Rated Voltage
  • Electric Vibrator Motor for Toys with 3.0V DC Rated Voltage
Electric Vibrator Motor for Toys with 3.0V DC Rated Voltage

Electric Vibrator Motor for Toys with 3.0V DC Rated Voltage

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 3.0V DC
    • Operating voltage range: 1.0-3.5 V DC
    • Environmental temperature: +5 to +35°C
    • Environmental humidity: 40-85% RH
    • Motor position: motor to be held with shaft horizontally
    • Electrical characteristics (at initial stage after 30 seconds run-in):
    • No load:
      • Torque: R6.0*4.8 vibrators
      • Current: 700mA (maximum)
      • Speed: 10,000 ± 10%rpm
    • On load:
      • Stall current: ≤1,700mA
      • Start voltage: ≤0.6V
      • Insulation resistance: ≥1m, measured between motor terminals and motor metal housing with 100V DC
    • Direction of rotation: CW when viewing motor output side with positive voltage applied to positive (red) terminal
  • Mechanical characteristics:
    • Operating temperature: -10 to +60°C
    • End play: 0.05 to 0.35mm
    • Noise: ≤55dB (distance: 10cm, background noise: ≤26dB)
    • Dimension drawing: see<outline>
  • Rated voltage: 3.0V DC
  • Operating voltage range: 1.0-3.5 V DC
  • Environmental temperature: +5 to +35°C
  • Environmental humidity: 40-85% RH
  • Motor position: motor to be held with shaft horizontally
  • Electrical characteristics (at initial stage after 30 seconds run-in):
  • No load:
    • Torque: R6.0*4.8 vibrators
    • Current: 700mA (maximum)
    • Speed: 10,000 ± 10%rpm
  • On load:
    • Stall current: ≤1,700mA
    • Start voltage: ≤0.6V
    • Insulation resistance: ≥1m, measured between motor terminals and motor metal housing with 100V DC
  • Direction of rotation: CW when viewing motor output side with positive voltage applied to positive (red) terminal
  • Torque: R6.0*4.8 vibrators
  • Current: 700mA (maximum)
  • Speed: 10,000 ± 10%rpm
  • Stall current: ≤1,700mA
  • Start voltage: ≤0.6V
  • Insulation resistance: ≥1m, measured between motor terminals and motor metal housing with 100V DC
  • Operating temperature: -10 to +60°C
  • End play: 0.05 to 0.35mm
  • Noise: ≤55dB (distance: 10cm, background noise: ≤26dB)
  • Dimension drawing: see<outline>
