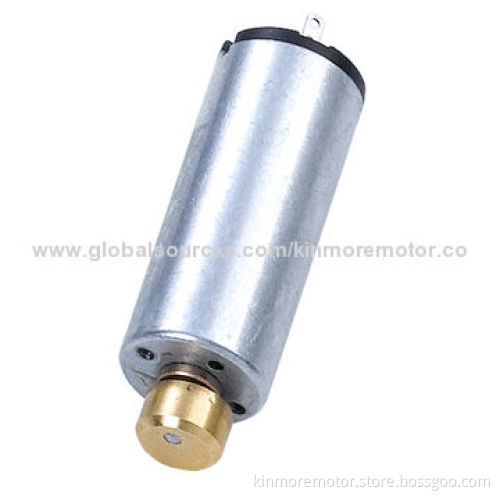

DC 7.4V Vibration Motors with Copper Eccentric Wheel for Adult Toys and Massager

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions:

Diameter: Ø12mm
Length: 20mm
Eccentric wheel dimensions: R 6.0*4.8mm

Technical data:

Rated voltage: 7.4V DC
Start voltage: 1.8V
On-load:
- Current: 0.14A
- Speed: 7500rpm
Stall current: 0.28A
Direction of rotation: CW/CCW
Note: all of the technical data could be customized

Features:

Copper eccentric wheel
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing

Typical applications:

Adult toys
Massager
Beauty apparatus

Customization options:

OEM and customization are available
Lightweight and long lifespan
Epoxy coating armature
Pinole resin base commentator
PTC protection
High torque at a low-speed
Fast response (small TM)
Low-noise design
Zero Axial gap
Resist intense vibrations
Small mechanical time constant
High-degree of protection
Low-cogging design
EMI suppression
Ball bearing in output side
With RoHS Directive-compliant

Our main products are DC motor, gear motor and vibration motor, the parameters can be customized

Diameter: Ø12mm

Length: 20mm

Eccentric wheel dimensions: R 6.0*4.8mm

Rated voltage: 7.4V DC

Start voltage: 1.8V

On-load:

Current: 0.14A
Speed: 7500rpm

Stall current: 0.28A

Direction of rotation: CW/CCW

Note: all of the technical data could be customized

Current: 0.14A

Speed: 7500rpm

Copper eccentric wheel

Precious metal brush

Stainless steel shaft

Oil-impregnated bearing

Adult toys

Massager

Beauty apparatus

OEM and customization are available

Lightweight and long lifespan

Epoxy coating armature

Pinole resin base commentator

PTC protection

High torque at a low-speed

Fast response (small TM)

Low-noise design

Zero Axial gap

Resist intense vibrations

Small mechanical time constant

High-degree of protection

Low-cogging design

EMI suppression

Ball bearing in output side

With RoHS Directive-compliant
