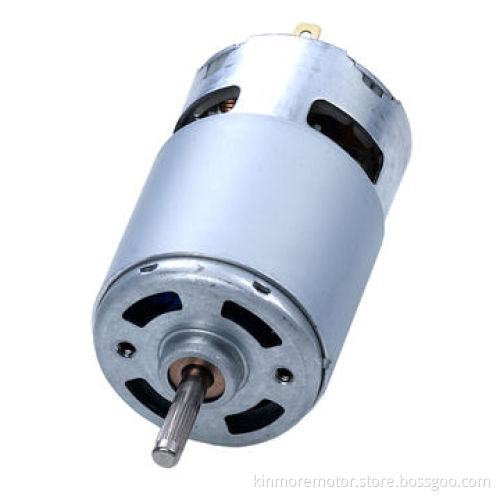

High quality dia. 45mm 66mm length big DC motor with flux ring
  • High quality dia. 45mm 66mm length big DC motor with flux ring
High quality dia. 45mm 66mm length big DC motor with flux ring

High quality dia. 45mm 66mm length big DC motor with flux ring

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 45mm x 66mm (material: SECD)
    • Shaft: Ø5.0mm carbon steel (nickel-coated), shaft length and shape can be customized.
    • Way of commutation: carbon leaf brush system
    • EMC/EMI suppression: optional
    • Ball bearing on the driving sides is available
  • Performance:
    • Rated voltage: 12V DC
    • At no load:
      • Speed: 6800rpm
      • Current: 0.53A
    • At maximum efficiency:
      • Speed: 5844rpm
      • Current: 3.24A
      • Torque: 44.1mNm/450g.cm
      • Output: 27W
    • At stall:
      • Current: 19.8A
      • Torque: 313.8mNm/3200g.cm
      • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
      • Structure: 2-pole stator and 5-slot armature
      • Insulation: class F magnet wire
      • Rotation: CW/CCW and reversible
  • Packing:
    • Quantity: 42 pieces
    • Gross weight: 15.3kg
    • Dimensions: 41.0 x 27.5 x 18.0cm
  • We assure our products in high quality, economical price and all-round services after sale
  • If you are into our products, please don't hesitate to inquiry
  • Motor housing (D x L): 45mm x 66mm (material: SECD)
  • Shaft: Ø5.0mm carbon steel (nickel-coated), shaft length and shape can be customized.
  • Way of commutation: carbon leaf brush system
  • EMC/EMI suppression: optional
  • Ball bearing on the driving sides is available
  • Rated voltage: 12V DC
  • At no load:
    • Speed: 6800rpm
    • Current: 0.53A
  • At maximum efficiency:
    • Speed: 5844rpm
    • Current: 3.24A
    • Torque: 44.1mNm/450g.cm
    • Output: 27W
  • At stall:
    • Current: 19.8A
    • Torque: 313.8mNm/3200g.cm
    • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
    • Structure: 2-pole stator and 5-slot armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW and reversible
  • Speed: 6800rpm
  • Current: 0.53A
  • Speed: 5844rpm
  • Current: 3.24A
  • Torque: 44.1mNm/450g.cm
  • Output: 27W
  • Current: 19.8A
  • Torque: 313.8mNm/3200g.cm
  • Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
  • Structure: 2-pole stator and 5-slot armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW and reversible
  • Quantity: 42 pieces
  • Gross weight: 15.3kg
  • Dimensions: 41.0 x 27.5 x 18.0cm
