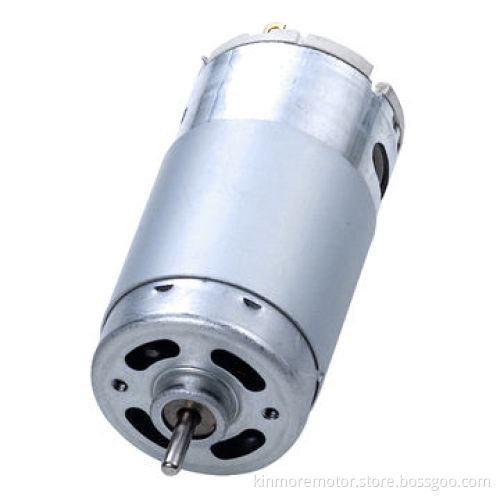

Vacuum cleaner motor, used in cars
  • Vacuum cleaner motor, used in cars
Vacuum cleaner motor, used in cars

Vacuum cleaner motor, used in cars

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 12V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperature: 25±10℃
    • Environmental humidity: 65%±20% RH
  • Electrical characteristics (at initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 16,000 ±10% rpm
      • Current: 1.1  A(max 1.8A)
    • Max efficiency:
      • Torque: 548.5g.cm
      • Speed: 14366 ±10% rpm
      • Current: 9.68  A(max 19.3A)
    • At stall:
      • Torque: 5370g.cm
      • Current: 85A (max 127.5A)
    • Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal
  • Mechanical characteristics:
    • Dimension drawing: See<outline>
    • End play: 0.05~0.55mm
    • Operating temperatures: -10-60℃
  • Rated voltage: 12V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperature: 25±10℃
  • Environmental humidity: 65%±20% RH
  • At no load:
    • Speed: 16,000 ±10% rpm
    • Current: 1.1  A(max 1.8A)
  • Max efficiency:
    • Torque: 548.5g.cm
    • Speed: 14366 ±10% rpm
    • Current: 9.68  A(max 19.3A)
  • At stall:
    • Torque: 5370g.cm
    • Current: 85A (max 127.5A)
  • Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal
  • Speed: 16,000 ±10% rpm
  • Current: 1.1  A(max 1.8A)
  • Torque: 548.5g.cm
  • Speed: 14366 ±10% rpm
  • Current: 9.68  A(max 19.3A)
  • Torque: 5370g.cm
  • Current: 85A (max 127.5A)
  • Dimension drawing: See<outline>
  • End play: 0.05~0.55mm
  • Operating temperatures: -10-60℃
