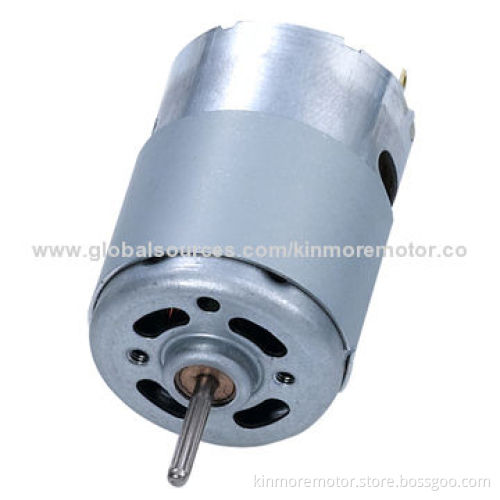

Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer
  • Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer
  • Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer
Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer
Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer

Vehicle DC Motor with Sintered Bronze Bearing for Ride-on Car and Printer

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Features:
    • Sintered bronze bearing
    • Leaf brush system
    • Metal end cap
    • 3 or 5 slots armature
  • Dimensions:
    • Diameter of the motor: 29mm
    • Length of the motor: 37.8mm
    • Diameter of the shaft: 2.3mm
  • Specifications:
    • Voltage:
      • Operating range: 6.0-12.0V
      • Nominal voltage: 12V
    • No loading:
      • Speed: 21,200rpm
      • Current: 0.44A
    • At maximum efficiency:
      • Speed: 18,367rpm
      • Current: 2.85A
      • Torque: 114.9g.cm
      • Output: 21.68W
    • Stall torque: 860g.cm
    • Stall current: 18.5A
    • Direction of rotation: CW/CCW
    • Note: all of the data could be custom made
  • Typical applications:
    • Printer/copy machines
    • Automatic cruise controls
    • Drill/screwdriver
    • Vacuum cleaners
  • Customization options:
    • OEM and customization are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small TM)
    • High torque at a low-speed
    • PTC protection
    • Pinole resin base commentator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Our main products are DC motor, gear motor and vibration motor, the parameters can be customized
  • Sintered bronze bearing
  • Leaf brush system
  • Metal end cap
  • 3 or 5 slots armature
  • Diameter of the motor: 29mm
  • Length of the motor: 37.8mm
  • Diameter of the shaft: 2.3mm
  • Voltage:
    • Operating range: 6.0-12.0V
    • Nominal voltage: 12V
  • No loading:
    • Speed: 21,200rpm
    • Current: 0.44A
  • At maximum efficiency:
    • Speed: 18,367rpm
    • Current: 2.85A
    • Torque: 114.9g.cm
    • Output: 21.68W
  • Stall torque: 860g.cm
  • Stall current: 18.5A
  • Direction of rotation: CW/CCW
  • Note: all of the data could be custom made
  • Operating range: 6.0-12.0V
  • Nominal voltage: 12V
  • Speed: 21,200rpm
  • Current: 0.44A
  • Speed: 18,367rpm
  • Current: 2.85A
  • Torque: 114.9g.cm
  • Output: 21.68W
  • Printer/copy machines
  • Automatic cruise controls
  • Drill/screwdriver
  • Vacuum cleaners
  • OEM and customization are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small TM)
  • High torque at a low-speed
  • PTC protection
  • Pinole resin base commentator
  • Epoxy coating armature
  • Lightweight and long lifespan
