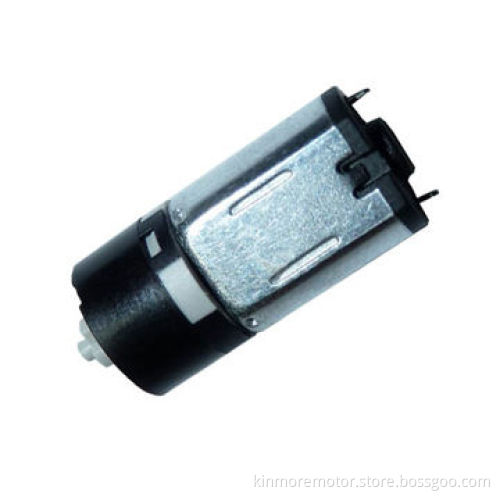

Micro gear motor, 10*21mm
  • Micro gear motor, 10*21mm
Micro gear motor, 10*21mm

Micro gear motor, 10*21mm

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specification model No.: KM-10A1012-1 71-4.5200
  • Measuring conditions:
    • Rated voltage: 4.5V DC
    • Motor position: To be measured with motor horizontally held.
    • Environmental temperatures: 5-35℃
    • Environmental humidity range: 40-85% RH
  • Electrical characteristics (At initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 200 ± 10% rpm
      • Current: ≤ 110mA
    • At on load:
      • Torque: 170g.cm
      • Speed: 160 ± 10% rpm
      • Current:  ≤380mA
    • At stall:
      • Torque: ≥ 680g.cm
      • Current: ≤ 1500mA
  • Direction of rotation: CW  (Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal
  • Mechanical characteristics
    • Dimension drawing: See<outline>.
    • End plays: 0.05-0.35mm.
    • Operating temperatures: -10-60 ℃
  • Rated voltage: 4.5V DC
  • Motor position: To be measured with motor horizontally held.
  • Environmental temperatures: 5-35℃
  • Environmental humidity range: 40-85% RH
  • At no load:
    • Speed: 200 ± 10% rpm
    • Current: ≤ 110mA
  • At on load:
    • Torque: 170g.cm
    • Speed: 160 ± 10% rpm
    • Current:  ≤380mA
  • At stall:
    • Torque: ≥ 680g.cm
    • Current: ≤ 1500mA
  • Speed: 200 ± 10% rpm
  • Current: ≤ 110mA
  • Torque: 170g.cm
  • Speed: 160 ± 10% rpm
  • Current:  ≤380mA
  • Torque: ≥ 680g.cm
  • Current: ≤ 1500mA
  • Dimension drawing: See<outline>.
  • End plays: 0.05-0.35mm.
  • Operating temperatures: -10-60 ℃
