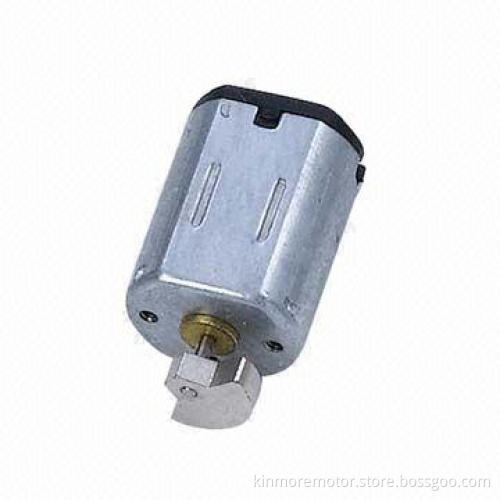

CE and RoSH Marks FF-N20VA DC Micro Motor for Adult Toys, 3V DC Rated Voltage, 10,700rpm Rated Speed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight

Product Description

Motor housing (D x F x L): 12 x 10 x 15.1mm

Material: SECD

Shaft (diameter): 1.0mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Magnet type: NdFeB

Rotation: CW/CCW and reversible

Options: extended shaft on the end cap side, EMI/EMC suppression

Rated voltage: 3V DC

Rated speed: 10,700rpm

Rated current: 0.125

Rated load: R4.2*2.0mm

Stall current: 0.6A

Customized data requirements are welcomed for our engineer's evaluation

Suitable for electric shavers and toys

Constructions of motor:

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commutator

Copper-graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 +f iber end cap

Cylinder (self-aligning) sintered bush

-155 degrees (class F) copper wire
