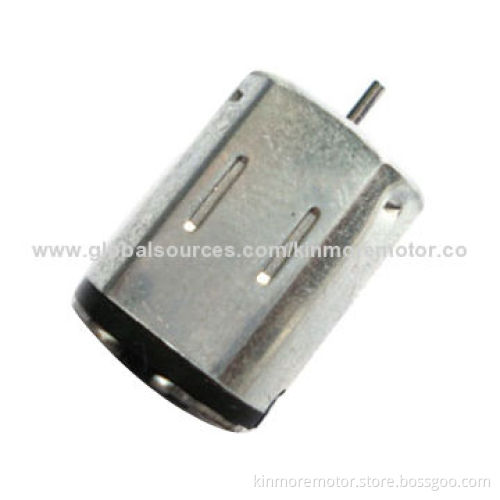

DC Micro Motor with Diameter 12mm for Blood Pressure Pumps, Door Lock Actuators, Electric Actuators
  • DC Micro Motor with Diameter 12mm for Blood Pressure Pumps, Door Lock Actuators, Electric Actuators
DC Micro Motor with Diameter 12mm for Blood Pressure Pumps, Door Lock Actuators, Electric Actuators

DC Micro Motor with Diameter 12mm for Blood Pressure Pumps, Door Lock Actuators, Electric Actuators

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Specifications:
    • Motor housing (D x flat x L): 8 x 6 x 10mm (material: SECD)
    • Shaft (diameter): 1.0mm carbon steel (nickel coating)
    • Way of commutation: metal brush
    • Structure: 2-pole stator and 3-slot armature
    • Magnet type: Nd-Fe-B
    • Rotation: CW/CCW and reversible
    • Options: EMI/EMC suppression, vibrator
    • Output shaft length can be customized
    • Measuring conditions:
      • Rated voltage: 5V DC
      • Motor position: To be measured with motor horizontally held
      • Environmental temperature: +5^+35°C
      • Environmental humidity range: 40^85% RH
    • Electrical characteristics:
      • At no loading:
        • Speed: 14,600rpm ±10%
        • Current: 30mA
      • At on loading:
        • Torque: 2.6g.cm
        • Speed: 11,800rpm ±10%
        • Current: 110mA
      • At stall:
        • Torque: 13.0g.cm
        • Current: 470mA
  • Applications:
    • RC models
    • Toys
    • Door lock actuators
    • Electric shavers
    • Blood pressure pumps
  • Our services:
    • OEM and customization orders are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degrees of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small tm)
    • High-torque at a low-speed
    • PTC protection
    • Phenolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Motor housing (D x flat x L): 8 x 6 x 10mm (material: SECD)
  • Shaft (diameter): 1.0mm carbon steel (nickel coating)
  • Way of commutation: metal brush
  • Structure: 2-pole stator and 3-slot armature
  • Magnet type: Nd-Fe-B
  • Rotation: CW/CCW and reversible
  • Options: EMI/EMC suppression, vibrator
  • Output shaft length can be customized
  • Measuring conditions:
    • Rated voltage: 5V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperature: +5^+35°C
    • Environmental humidity range: 40^85% RH
  • Electrical characteristics:
    • At no loading:
      • Speed: 14,600rpm ±10%
      • Current: 30mA
    • At on loading:
      • Torque: 2.6g.cm
      • Speed: 11,800rpm ±10%
      • Current: 110mA
    • At stall:
      • Torque: 13.0g.cm
      • Current: 470mA
  • Rated voltage: 5V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperature: +5^+35°C
  • Environmental humidity range: 40^85% RH
  • At no loading:
    • Speed: 14,600rpm ±10%
    • Current: 30mA
  • At on loading:
    • Torque: 2.6g.cm
    • Speed: 11,800rpm ±10%
    • Current: 110mA
  • At stall:
    • Torque: 13.0g.cm
    • Current: 470mA
  • Speed: 14,600rpm ±10%
  • Current: 30mA
  • Torque: 2.6g.cm
  • Speed: 11,800rpm ±10%
  • Current: 110mA
  • Torque: 13.0g.cm
  • Current: 470mA
  • RC models
  • Toys
  • Door lock actuators
  • Electric shavers
  • Blood pressure pumps
  • OEM and customization orders are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degrees of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small tm)
  • High-torque at a low-speed
  • PTC protection
  • Phenolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
