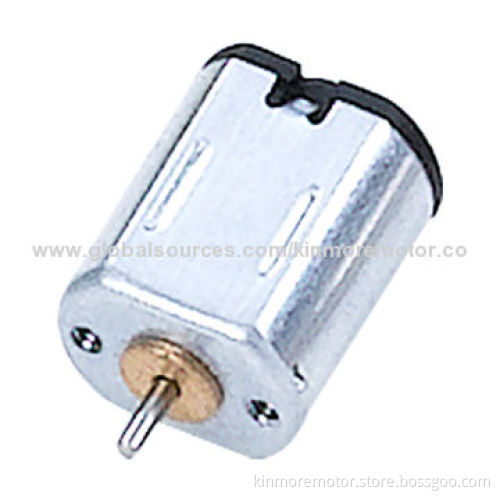

4.5V Medical Blood Pressure Pumps Micro DC Motor, 1-30,000rpm Speed Range

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Features:

NdFeB magnet
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing
Blood pressure pump
Card reader
Camera
Toy
Outline dimensions:
Motor housing length: 11.8mm
- Motor housing diameter: 10.0mm
- Motor housing flat: 8.0mm
- Shaft diameter: 1.0mm
Shaft length: can be customized

Technical data:

Operating voltage range: 2.0-5.0°C
Rated voltage: 4.5V
No load speed: 23,200rpm
No load current: 65mA
At maximum efficiency speed: 17,500rpm
At maximum efficiency current: 0.14
At maximum efficiency torque: 1g.cm
At maximum efficiency output: 0.2W
Stall torque: 4g.cm
Stall current: 0.3A
Learn more about us:
- Diameter: 6-52mm
DC micro motor and gear motor, auto DC motor
Electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5-30kg.cm
Applications: home appliance, power tools, toys and model, precision instrument
Office equipment, personal care product, automotive, audio, visual equipment and more

Inspection to guarantee reliable quality:

Inspection occurs throughout the whole process flow
Unitizing Hexagon CMM, X-ray
Spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
- Tooling inspection
- Material lot acceptance inspection
- Material life test
- First article inspection
- Operator self-inspection
- Random inspection
- 100% inspection to key process and motor electric performance
- Final inspection
- Outgoing inspection

NdFeB magnet

Precious metal brush

Stainless steel shaft

Oil-impregnated bearing

Blood pressure pump

Card reader

Camera

Toy

Outline dimensions:

Motor housing length: 11.8mm

Motor housing diameter: 10.0mm
Motor housing flat: 8.0mm
Shaft diameter: 1.0mm

Shaft length: can be customized

Motor housing diameter: 10.0mm

Motor housing flat: 8.0mm

Shaft diameter: 1.0mm

Operating voltage range: 2.0-5.0°C

Rated voltage: 4.5V

No load speed: 23,200rpm

No load current: 65mA

At maximum efficiency speed: 17,500rpm

At maximum efficiency current: 0.14

At maximum efficiency torque: 1g.cm

At maximum efficiency output: 0.2W

Stall torque: 4g.cm

Stall current: 0.3A

Learn more about us:

Diameter: 6-52mm

DC micro motor and gear motor, auto DC motor

Electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more

DC voltage range: 1.5-42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000rpm

Stall torque: 5-30kg.cm

Applications: home appliance, power tools, toys and model, precision instrument

Office equipment, personal care product, automotive, audio, visual equipment and more

Diameter: 6-52mm

Inspection occurs throughout the whole process flow

Unitizing Hexagon CMM, X-ray

Spectrometer, MEA motor performance testing system, tension tester, torque tester, motor performance testing system and other geometrical testing equipment, we perform a battery of inspections from tooling, material to finished products as below:
