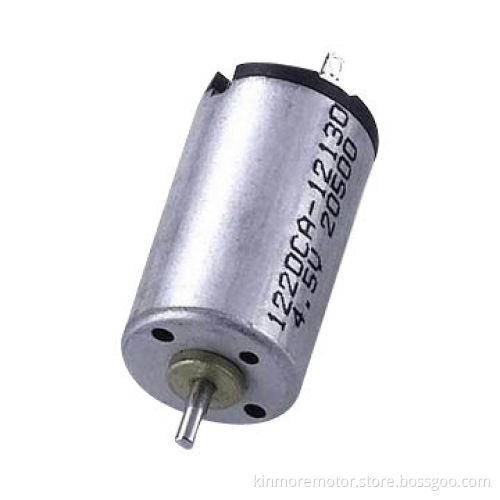

DC Micro Motor with NdFeB Magnet for Door Lock, Massager and Toys

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x L): 12 x 20mm (material: SECD)
Shaft (diameter): 1.5mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression and vibration motor

Technical performance data:

Rated voltage: 1.5V DC
At no load:
- Speed: 15,500rpm
- Current: 0.26A (maximum)
At 4.1g.cm load:
- Speed: 9,600rpm
- Current: 0.85A (maximum)
At stall:
- Current: 1.8A (maximum)
- Torque: 9g.cm (minimum)
Customized data requirements are welcome for our engineer's evaluation

Motor housing (D x L): 12 x 20mm (material: SECD)

Shaft (diameter): 1.5mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression and vibration motor

Rated voltage: 1.5V DC

At no load:

Speed: 15,500rpm
Current: 0.26A (maximum)

At 4.1g.cm load:

Speed: 9,600rpm
Current: 0.85A (maximum)

At stall:

Current: 1.8A (maximum)
Torque: 9g.cm (minimum)

Customized data requirements are welcome for our engineer's evaluation

Speed: 15,500rpm

Current: 0.26A (maximum)

Speed: 9,600rpm

Current: 0.85A (maximum)

Current: 1.8A (maximum)

Torque: 9g.cm (minimum)

Applications: suitable for household appliance and door locks

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque range: 5g.cm - 30kg.cm
Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque range: 5g.cm - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on
