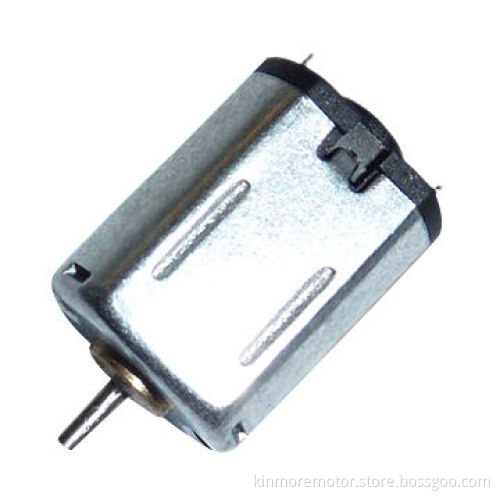

3V mini micro motor DC, applied to blood pressure pump, with 10mm diameter

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T

Product Description

Specifications:

Motor housing dimension (D x F x L): 10 x 8 x 12.5mm
Material: SECD
Shaft (diameter): 1.0mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2-pole stator and 3-slot armature
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Options: extended shaft on the end cap side, EMI/EMC suppression

Technical performance data:

Rated voltage: 3.0V DC
At no load:
- Speed: 12,900rpm
- Current: 0.055A
Efficiency (maximum):
- Speed: 10,300rpm
- Current: 0.11A
- Torque: 1.0g.cm
- Output power: 0.11W
At stall:
- Current: 0.38A (maximum)
- Torque: 4g.cm (minimum)
Customized data requirements are welcome, for our engineer's evaluation

Typical applications:

Blood pressure pumps
Camcorder
Electric shaver
Toy

About us:

Our main products: diameter 6-52mm DC micro motor and gear motor, auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor
AC rectify: 100V, 110V, 220V, 230V, 240V
Speed range: 1 -30,000rpm
Stall torque: 5-30kg.cm
Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment
