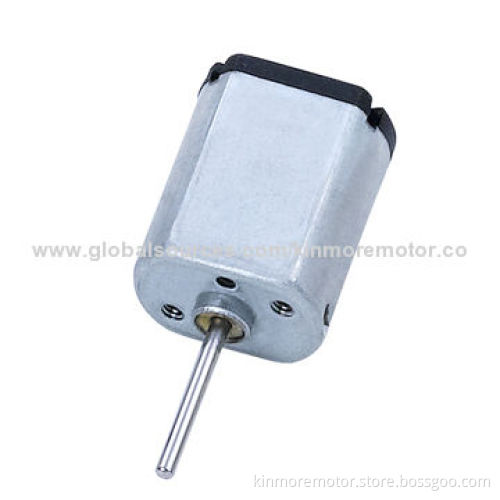

12V DC Micro Motor with Precious Metal Brush for Electric Lock and Game Controller

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimension of the motor:

Diameter of the housing: 15.5mm
Width of the housing: 12mm
Length of the housing: 18.6mm
Diameter of the shaft: 1.5mm

Performance fo the motor:

Operating voltage: 3.5-12.0V
Nominal voltage: 12.0V
No load
Speed: 11000rpm
Current: 0.02A
At maximum efficiency
Speed: 7,800rpm
Current: 0.065A
Torque: 0.49mNm/5g.cm
Output: 0.4W
Stall torque: 1.67mNm/17g.cm
Stall current: 0.18A

Customization options:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High degree of protection
Small mechnical time constant
Resist intense vibrations
Zero axial gap
Low noise design
Fast response (small Tm)
High torque at a low speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Lightweight and long life

Diameter of the housing: 15.5mm

Width of the housing: 12mm

Length of the housing: 18.6mm

Diameter of the shaft: 1.5mm

Operating voltage: 3.5-12.0V

Nominal voltage: 12.0V

No load

Speed: 11000rpm

Current: 0.02A

At maximum efficiency

Speed: 7,800rpm

Current: 0.065A

Torque: 0.49mNm/5g.cm

Output: 0.4W

Stall torque: 1.67mNm/17g.cm

Stall current: 0.18A

OEM and customization are available

RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechnical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at a low speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Lightweight and long life
