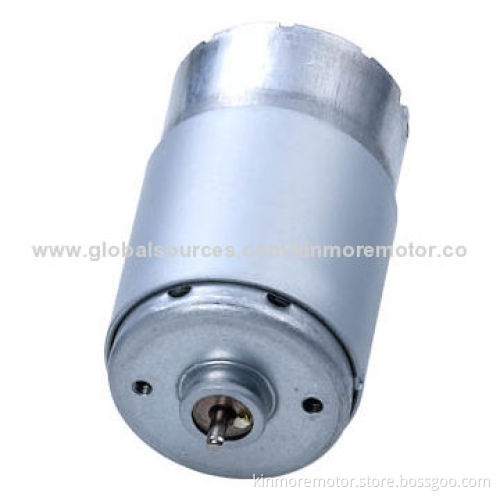

Micro motor DC with flux ring and cooling fan use in mixer, sewing machine, hair clipper

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Diameter: 36mm
Body length: 60mm
Shaft diameter: 3.175mm
Working voltage: 230V
No loading range:
- Speed: 18,000rpm
- Current: 0.09A
On loading:
- Speed: 14,440rpm
- Current: 0.35A
- Rated loading: 395.4g.cm
Stall torque: 2,000gcm
Stall current: 1.4A
Above is just for customers' reference, customized specifications are welcomed

Product range:

Main products: motors, gear motors, DC motors, brush DC motors, spur gear motors, micro motors and vibration motors
Sizes: Ø6 to 66mm
Voltages: 1.5 to 42V DC
AC rectify range: 100, 110, 220, 230 and 240V
Speeds: 1 to 30,000rpm
Stall torque range: 5 to 30kg/cm

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify range: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque range: 5 - 30kg.cm

Applications: home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Our services:

OEM and customization are available
ROHS Directive-compliant
Ball bearing in output Side
EMI suppression
Low-cogging design
High degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low noise design
Fast response (small Tm)
High torque at a low speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Light weight and long life

Diameter: 36mm

Body length: 60mm

Shaft diameter: 3.175mm

Working voltage: 230V

No loading range:

Speed: 18,000rpm
Current: 0.09A

On loading:

Speed: 14,440rpm
Current: 0.35A
Rated loading: 395.4g.cm

Stall torque: 2,000gcm

Stall current: 1.4A

Above is just for customers' reference, customized specifications are welcomed

Speed: 18,000rpm

Current: 0.09A

Speed: 14,440rpm

Current: 0.35A

Rated loading: 395.4g.cm

Main products: motors, gear motors, DC motors, brush DC motors, spur gear motors, micro motors and vibration motors

Sizes: Ø6 to 66mm

Voltages: 1.5 to 42V DC

AC rectify range: 100, 110, 220, 230 and 240V

Speeds: 1 to 30,000rpm

Stall torque range: 5 to 30kg/cm

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify range: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque range: 5 - 30kg.cm

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output Side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at a low speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Light weight and long life
