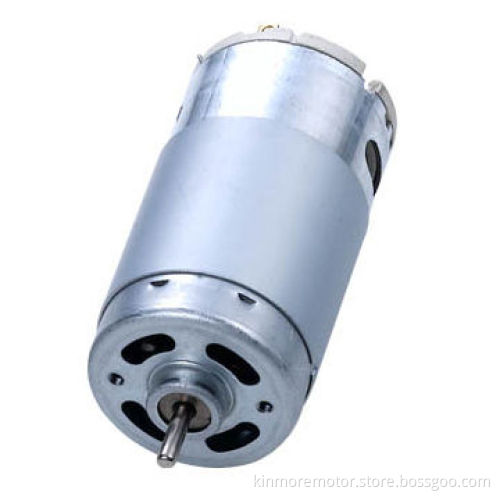

230V high voltage motor suit for hand blender, coffee machine, mixer and juicer

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x L): 35.8 x 67mm (material: SECD)
Shaft: Ø3.175mm carbon steel (nickel-coated)
Way of commutation: carbon leaf brush system
Structure: 2-pole stator and 8-slot armature
Ball bearing on the driving sides are available
Size range (D): 6 to 52mm
DC voltage range: 1.5 to 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 to 30,000rpm
Stall torque: 5g.cm to 30kg.cm
Ideal for hand blender, coffee machine, mixer and juicer
Insulation: class F magnet wire
Rotation: CW/CCW and reversible
Rated voltage: 230V DC

Performance:

At no load:
- Speed: 8289rpm
- Current: 0.04A
At efficiency (maximum):
- Speed: 6636rpm
- Torque: 23.1mNm
- Current: 0.11A
- Output: 15.43W
At stall:
- Current: 0.62A
- Torque: 160.5mNm
- Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

Customization optional:

OEM and customization are available
Comes with RoHS Directive-compliant
Ball vearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Applications:

Home appliance, power tools, toys and model, precisioninstrument, office equipment, personal care products, automotive, audio and visual equipment and more

About us:

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors
Product size range: 6 - 52mm, diameter
DC voltage range: 1.5 - 42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1 - 30,000RPM
Stall torque: 5g.cm - 30kg.cm

Applications:

Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on

Motor housing (D x L): 35.8 x 67mm (material: SECD)

Shaft: Ø3.175mm carbon steel (nickel-coated)

Way of commutation: carbon leaf brush system

Structure: 2-pole stator and 8-slot armature

Ball bearing on the driving sides are available

Size range (D): 6 to 52mm

DC voltage range: 1.5 to 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 to 30,000rpm

Stall torque: 5g.cm to 30kg.cm

Ideal for hand blender, coffee machine, mixer and juicer

Insulation: class F magnet wire

Rotation: CW/CCW and reversible

Rated voltage: 230V DC

At no load:

Speed: 8289rpm
Current: 0.04A

At efficiency (maximum):

Speed: 6636rpm
Torque: 23.1mNm
Current: 0.11A
Output: 15.43W

At stall:

Current: 0.62A
Torque: 160.5mNm
Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

Speed: 8289rpm

Current: 0.04A

Speed: 6636rpm

Torque: 23.1mNm

Current: 0.11A

Output: 15.43W

Current: 0.62A

Torque: 160.5mNm

Options: shaft length, technical data like voltage, speed,torque, optional EMI and EMC suppression

OEM and customization are available

Comes with RoHS Directive-compliant

Ball vearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan

Home appliance, power tools, toys and model, precisioninstrument, office equipment, personal care products, automotive, audio and visual equipment and more

Main products: auto DC, electric, gear, DC, brush DC, spurgear, micro, vibration and more motors

Product size range: 6 - 52mm, diameter

DC voltage range: 1.5 - 42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1 - 30,000RPM

Stall torque: 5g.cm - 30kg.cm

Home appliance, power tools, toys & model, precision instrument, office equipment, personal care product, automotive, audio & visual equipment and so on
