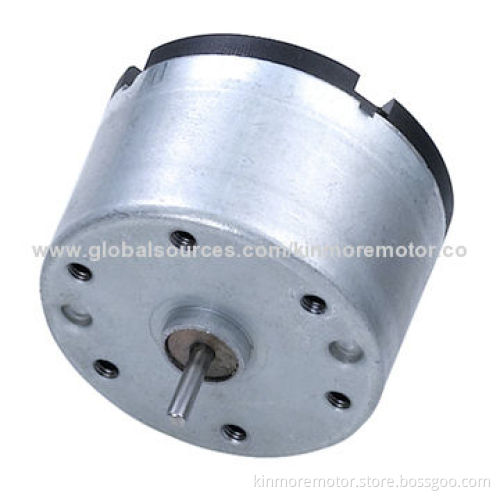

12V DC Motor with Plastic End, Cap Motor for Vending Machine
  • 12V DC Motor with Plastic End, Cap Motor for Vending Machine
12V DC Motor with Plastic End, Cap Motor for Vending Machine

12V DC Motor with Plastic End, Cap Motor for Vending Machine

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Dimension of the DC motor:
    • Diameter of housing: Ø33mm
    • Length of housing: 22.7mm
    • Diameter of shaft: Ø2.0mm
    • Length of shaft: could be custom made according to made
  • Technical data of the DC motor:
    • Voltages:
      • Operating voltages: 6.0-12.0V
      • Nominal voltage: 12.0V
    • No Load:
      • Speed: 6000rpm
      • Current: 0.03A
    • At max.efficiency:
      • Speed: 5200rpm
      • Current: 0.17A
      • Torque: 30g.cm
      • Ouput: 1.6W
      • Stall torque: 250g.cm
      • Stall current: 1.5A
      • Direction of rotation: CW/CCW
  • Noted: All of the technical data could be custom made according to your demand
  • Features of DC motor:
    • Plastic end cap
    • Oil-imprgnated bearing
    • Carbon brush
    • Stainless steel shaft
  • Inspection to guarantee reliable quality:
    • Tooling inspection
    • Material lot acceptance inspection
    • Material life test
    • First article inspection
    • Operator self-inspection
    • Random inspection
    • 100% inspection to key process and motor electric performance
    • Final inspection
  • Typical Application
    • Cash register
    • Vending machine
    • Spray machine
    • Egg mixer
  • Diameter of housing: Ø33mm
  • Length of housing: 22.7mm
  • Diameter of shaft: Ø2.0mm
  • Length of shaft: could be custom made according to made
  • Voltages:
    • Operating voltages: 6.0-12.0V
    • Nominal voltage: 12.0V
  • No Load:
    • Speed: 6000rpm
    • Current: 0.03A
  • At max.efficiency:
    • Speed: 5200rpm
    • Current: 0.17A
    • Torque: 30g.cm
    • Ouput: 1.6W
    • Stall torque: 250g.cm
    • Stall current: 1.5A
    • Direction of rotation: CW/CCW
  • Operating voltages: 6.0-12.0V
  • Nominal voltage: 12.0V
  • Speed: 6000rpm
  • Current: 0.03A
  • Speed: 5200rpm
  • Current: 0.17A
  • Torque: 30g.cm
  • Ouput: 1.6W
  • Stall torque: 250g.cm
  • Stall current: 1.5A
  • Direction of rotation: CW/CCW
  • Plastic end cap
  • Oil-imprgnated bearing
  • Carbon brush
  • Stainless steel shaft
  • Tooling inspection
  • Material lot acceptance inspection
  • Material life test
  • First article inspection
  • Operator self-inspection
  • Random inspection
  • 100% inspection to key process and motor electric performance
  • Final inspection
  • Cash register
  • Vending machine
  • Spray machine
  • Egg mixer
