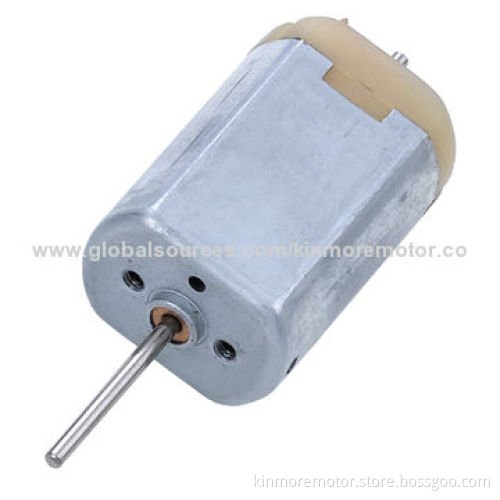

24V DC Motor with Oil-impregnated Bearing for Vending Machine and RC Model

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions:

Specifications:

Features:

Our products are DC motor, gear motor and vibration motor, the parameters can be customized according to your requirements

Diameter of housing: 24mm

Width of housing: 18.3mm

Length of housing: 36mm

Diameter of shaft: 2.0mm

Length of shaft: could be customized

Nominal voltage: 24V

No load:

At maximum efficiency:

Speed: 17,000rpm

Current: 0.11A

Speed: 14378rpm

Current: 0.7A

Torque: 76.5g.cm

Output: 11.53W

Stall torque: 560g.cm

Stall current: 4.4A

Direction of rotation: CW/CCW

Plastic end cap

Oil-impregnated bearing

Leaf brush system

Carbon steel shaft
