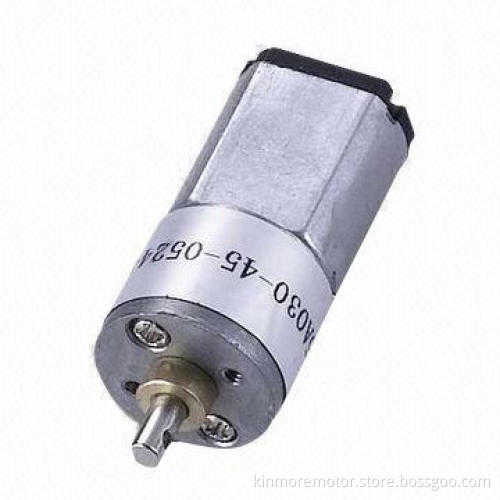

16mm/6V DC Geared Motor for Electric Locks/Robots, with Ø3mm Inline Shaft

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Gearbox: Ø16mm
Material: die-cast zinc
Shaft: Ø3mm inline carbon steel shaft with customD-shaped and length
DC motor (Ø x flat x L): 15.5 x 12 x 18.6mm
Rotation: CCW/CW, reversible
Gears: spur metal gears
Lubrication: grease filled
Way of commutation: metal brush
Reduction ratio are available: 1/13, 1/16, 1/18.4, 1/21, 1/26,1/32, 1/37, 1/40, 1/45, 1/53, 1/65, 1/75, 1/91, 1/100, 1/105,1/128, 1/148, 1/182, 1/210, 1/256, 1/283, 1/296, 1/362, 1/402,1/592, 1/723, 1/835 and 1/1021

Performance:

Ratio: 1/448
Voltage: 6V DC
At no loading:
- Speed: 24.2rpm
- Current: 0.025A (maximum)
At 1kg/cm loading:
- Speed: 18.2rpm
- Current: 0.065A (maximum)
Options: technical data like voltage, speed, torque, shaftdirection, shaft length, D-shaped size and length

Gearbox: Ø16mm

Material: die-cast zinc

Shaft: Ø3mm inline carbon steel shaft with customD-shaped and length

DC motor (Ø x flat x L): 15.5 x 12 x 18.6mm

Rotation: CCW/CW, reversible

Gears: spur metal gears

Lubrication: grease filled

Way of commutation: metal brush

Reduction ratio are available: 1/13, 1/16, 1/18.4, 1/21, 1/26,1/32, 1/37, 1/40, 1/45, 1/53, 1/65, 1/75, 1/91, 1/100, 1/105,1/128, 1/148, 1/182, 1/210, 1/256, 1/283, 1/296, 1/362, 1/402,1/592, 1/723, 1/835 and 1/1021

Ratio: 1/448

Voltage: 6V DC

At no loading:
