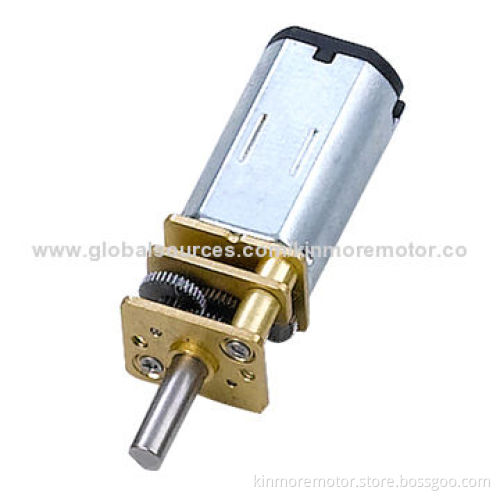

Mini Geared Motor, DC 2.5 Volt with 1:50 Ratio for Robot/Video

Mini Geared Motor, DC 2.5 Volt with 1:50 Ratio for Robot/Video

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Diameter of the motor: 12.0mm
The length of the motor: 20.1mm
Diameter of the gearbox: 12mm

Technical data:

Voltage:
- Operating range: 2.0-3.0V
- Nominal voltage: 2.5V
No load:
- Current: 0.04A
- Speed: 100rpm
On load:
- Current: 0.14A
- Tprque:0.054kg.cm
- Speed: 80rpm

Features:

Bi-direction
Metal or carbon brush DC motor
Spur gears
Copperplate gear case
Sleeve bronze bushing
Typical applications:
Coffee machine
Cordless drill
Robot
Electric lock
Video/camera

Our company profile:

Private company, located in Shenzhen, China
2 factories, 900+ employees and 90 million pcs annual capacity
Active in more than 50 countries
Sales in 2013: USD115 million
Output in 2013:60 million pcs
10% sales invested in R&D and new facilities
ISO/TS 16949:2009 and ISO 9001:2008 certificated factories
Continuously focus on customers’ needs ,and products improvement

Diameter of the motor: 12.0mm

The length of the motor: 20.1mm

Diameter of the gearbox: 12mm

Voltage:

Operating range: 2.0-3.0V
Nominal voltage: 2.5V

No load:

Current: 0.04A
Speed: 100rpm

On load:

Current: 0.14A
Tprque:0.054kg.cm
Speed: 80rpm

Operating range: 2.0-3.0V

Nominal voltage: 2.5V

Current: 0.04A

Speed: 100rpm

Current: 0.14A

Tprque:0.054kg.cm

Speed: 80rpm

Bi-direction

Metal or carbon brush DC motor

Spur gears

Copperplate gear case

Sleeve bronze bushing

Typical applications:

Coffee machine

Cordless drill

Robot

Electric lock

Video/camera

Private company, located in Shenzhen, China

2 factories, 900+ employees and 90 million pcs annual capacity

Active in more than 50 countries

Sales in 2013: USD115 million

Output in 2013:60 million pcs

10% sales invested in R&D and new facilities

ISO/TS 16949:2009 and ISO 9001:2008 certificated factories

Continuously focus on customers’ needs ,and products improvement
