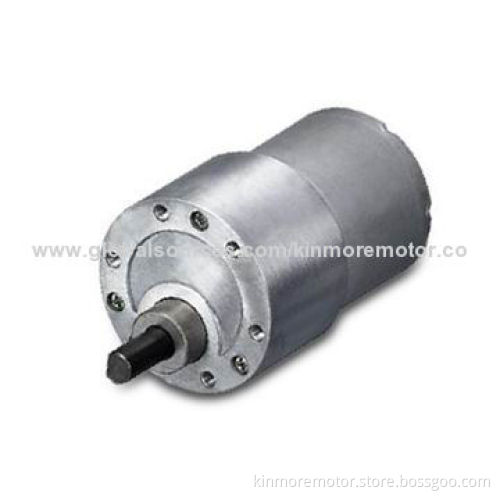

Micro Gear Motor with High-torque, Low-speed, Suitable for Vending Machines, Actuator and Robots

Get Latest Price

Payment Type:: T/T and L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and L/C

Product Description

Features:

Bi-direction rotation
Spur gears
Metal or carbon brush
Zinc die cast gear case
Sleeve bronze bushing

Dimensions:

Motor housing length: 19.3mm
Diameter: 32mm
Gearbox diameter: 37mm
Maximum shaft diameter: 6mm
Remark: the output shaft length, D cut shaft length and height are customized

Performance data:

Voltage:
- Operating range: 3-6V
- Rated voltage: 6V DC
No loading:
- Current 0.04A
- Speed: 10rpm
On loading:
- Current: 0.18A
- Torque: 4kgf.cm
- Speed: 8rpm

Typical applications:

Robots
Power tools
Actuator
Vending machines

Our services:

OEM and customization are available
RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at a low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Bi-direction rotation

Spur gears

Metal or carbon brush

Zinc die cast gear case

Sleeve bronze bushing

Motor housing length: 19.3mm

Diameter: 32mm

Gearbox diameter: 37mm

Maximum shaft diameter: 6mm

Remark: the output shaft length, D cut shaft length and height are customized

Voltage:

Operating range: 3-6V
Rated voltage: 6V DC

No loading:

Current 0.04A
Speed: 10rpm

On loading:

Current: 0.18A
Torque: 4kgf.cm
Speed: 8rpm

Operating range: 3-6V

Rated voltage: 6V DC

Current 0.04A

Speed: 10rpm

Current: 0.18A

Torque: 4kgf.cm

Speed: 8rpm

Robots

Power tools

Actuator

Vending machines

OEM and customization are available

RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at a low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
