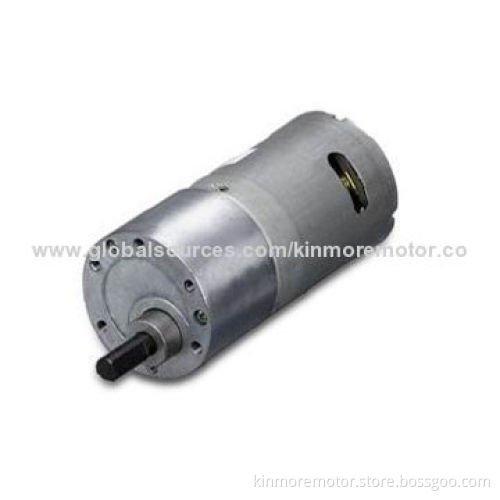

High Quality, 12V DC Motor for Vending Machine, Gate, Shutter, Dispenser, Auto Tools, Curtain Life

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Dimensions:

Technical data:

Typical applications:

Our services:

Gearbox (D x L): 37 x 27 to 37mm (length varies with ratio)

DC motor (D x L): 35.8 x 50mm

Rated voltage: 12V

No-load speed: 130rpm

On-load torque: 11kg/cm

On-load speed: 23rpm

Customized requirements are welcome

Vending machine

Dispenser

Power tool

Valve/EPB/robot/model

Satellite and solar system

OEM and customization are available

ROHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low noise design

Fast response (small Tm)

High torque at a low speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Light weight and long life
