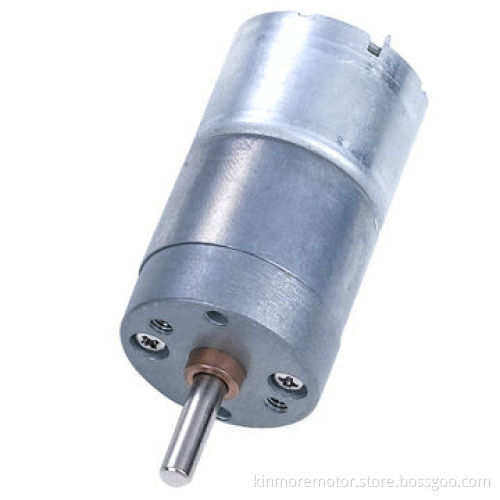

12 volt DC geared motor with 1/75 ratio for electric lock

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the gear motor:

Features of the gear motor:

Performance of the gear motor:

Typical applications:

Diameter of the motor: 24.4mm

Length of the motor: 18.4mm

Diameter of the gearbox: 25mm

Diameter of the shaft: 4mm

Bi-direction

Metal or carbon brush DC motor

Spur gears

Zinc die cast gear case

Sleeve bronze bushing

Reduction ratio: 1/75

Voltages:

No load:

On load:

Operating range: 6.0-12.0V

Nominal voltage: 12V

Current: 0.03A

Speed: 95rpm

Current :0.06A

Torque: 0.22kg.cm

Speed: 84.1rpm

Vending machines

Garden tools

Electric locks

Actuator
