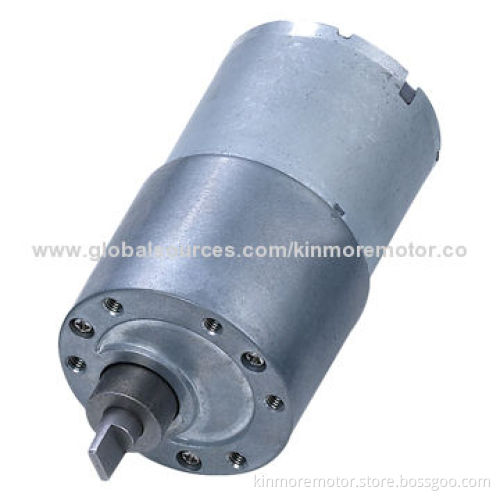

12V DC, gear motor with 1/70 ratio for robot/vending machine

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Bi-direction
Carbon brush DC motor
Spur gears
Zinc die-cast gear case
Sleeve bronze bushing

Dimension:

Diameter of the motor: 34.6mm
Length of the motor: 30.8mm
Diameter of the gearbox: 37mm
Diameter of the shaft: 6mm
Note: the length of the gearbox and the length of the shaft and the shaft could be custom made according to your requirements

Performance:

Ratio: 1/70
Voltage:
- Operating range: 6.0-12.0V
- Nominal voltage: 12.0V
No load:
- Current: 0.08A
- Speed: 86.4rpm
On Load
- Current: 0.26A
- Torque: 1.5kg.cm
- Speed: 77.3rpm
Direction of rotation: CW/CCW
Note: all of the above data could be custom made according to your requirements

Typical application:

Vending machine
Dispenser
Satellite/solar system
Valve/EPB/robot/model
Power tool

Bi-direction

Carbon brush DC motor

Spur gears

Zinc die-cast gear case

Sleeve bronze bushing

Diameter of the motor: 34.6mm

Length of the motor: 30.8mm

Diameter of the gearbox: 37mm

Diameter of the shaft: 6mm

Note: the length of the gearbox and the length of the shaft and the shaft could be custom made according to your requirements

Ratio: 1/70

Voltage:

Operating range: 6.0-12.0V
Nominal voltage: 12.0V

No load:

Current: 0.08A
Speed: 86.4rpm

On Load

Current: 0.26A
Torque: 1.5kg.cm
Speed: 77.3rpm

Direction of rotation: CW/CCW

Note: all of the above data could be custom made according to your requirements

Operating range: 6.0-12.0V

Nominal voltage: 12.0V

Current: 0.08A

Speed: 86.4rpm

Current: 0.26A

Torque: 1.5kg.cm

Speed: 77.3rpm

Vending machine

Dispenser

Satellite/solar system

Valve/EPB/robot/model

Power tool
