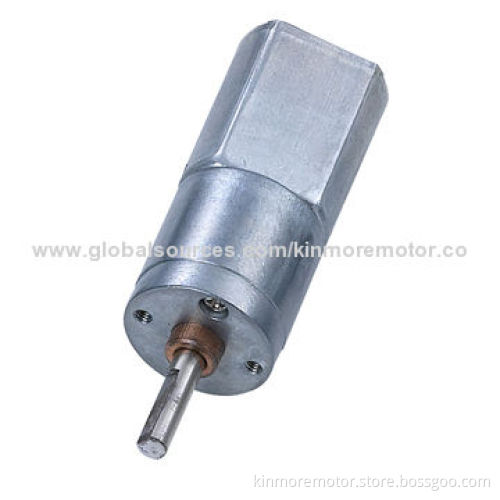

Geared DC Motor with High Load Torque for Vending Machine, Duplicating Machine, Pumps
  • Geared DC Motor with High Load Torque for Vending Machine, Duplicating Machine, Pumps
Geared DC Motor with High Load Torque for Vending Machine, Duplicating Machine, Pumps

Geared DC Motor with High Load Torque for Vending Machine, Duplicating Machine, Pumps

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontally held
    • Environmental temperature: 25 ±10℃
    • Environmental humidity: 65 ±20% RH
  • Electrical characteristics (at initial stage after 30 seconds run-in):
    • At no load:
      • Speed: 43±12%rpm
      • Current: 0.05A (maximum 0.08A)
    • At on load:
      • Torque: 1.4kg.cm
      • Speed: 29±12%rpm
      • Current: 0.12A (maximum  0.2A)
    • Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Size specification:
    • Gearbox diameter 20mm
    • DC motor housing length 32.1mm
    • Remark: output shaft size and D-Cut size can be customized
  • Typical applications:
    • Vending machine
    • Business machine
    • Duplicating machine
    • Pump
  • Our service:
    • OEM and customization are available
    • With RoHS Directive-compliant
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at a low-speed
    • PTC protection
    • Penolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontally held
  • Environmental temperature: 25 ±10℃
  • Environmental humidity: 65 ±20% RH
  • At no load:
    • Speed: 43±12%rpm
    • Current: 0.05A (maximum 0.08A)
  • At on load:
    • Torque: 1.4kg.cm
    • Speed: 29±12%rpm
    • Current: 0.12A (maximum  0.2A)
  • Direction of rotation: CCW (counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Speed: 43±12%rpm
  • Current: 0.05A (maximum 0.08A)
  • Torque: 1.4kg.cm
  • Speed: 29±12%rpm
  • Current: 0.12A (maximum  0.2A)
  • Gearbox diameter 20mm
  • DC motor housing length 32.1mm
  • Remark: output shaft size and D-Cut size can be customized
  • Vending machine
  • Business machine
  • Duplicating machine
  • Pump
  • OEM and customization are available
  • With RoHS Directive-compliant
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at a low-speed
  • PTC protection
  • Penolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
