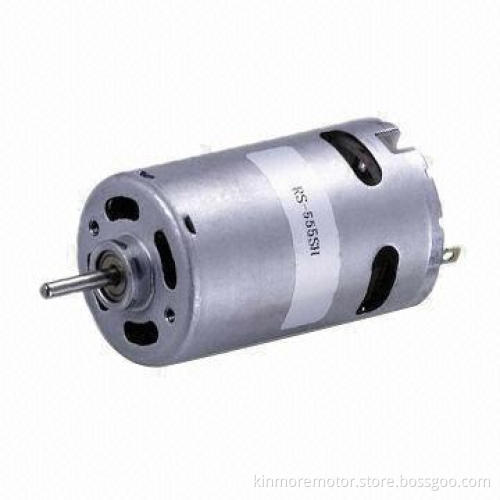

12V DC Electric Motor, 35.8 x 57mm Housing, Suitable for Screwdrivers/Power Tools/Air Pumps/Models
  • 12V DC Electric Motor, 35.8 x 57mm Housing, Suitable for Screwdrivers/Power Tools/Air Pumps/Models
12V DC Electric Motor, 35.8 x 57mm Housing, Suitable for Screwdrivers/Power Tools/Air Pumps/Models

12V DC Electric Motor, 35.8 x 57mm Housing, Suitable for Screwdrivers/Power Tools/Air Pumps/Models

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 35.8 x 57mm
    • Material: SECD
    • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling is available)
    • Way of commutation: carbon leaf brush system
    • Structure: 2-pole starter and 5-slot armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW, reversible
  • Performance:
    • Rated voltage: 12V DC
    • At no load:
      • Speed: 5,800rpm
      • Current: 0.30A
    • At maximum efficiency:
      • Speed: 4,905rpm
      • Current: 1.095A
      • Torque: 223.9g/cm
      • Output: 11.261W
      • Efficiency: 85.66%
    • At stall:
      • Current: 6A
      • Torque: 1,450g/cm
    • Options:
      • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
  • Packing:
    • Quantity: 60 pieces
    • Gross weight: up to 13.8kg
    • Dimensions: 39 x 29 x 19cm
  • Motor housing (D x L): 35.8 x 57mm
  • Material: SECD
  • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling is available)
  • Way of commutation: carbon leaf brush system
  • Structure: 2-pole starter and 5-slot armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW, reversible
  • Rated voltage: 12V DC
  • At no load:
    • Speed: 5,800rpm
    • Current: 0.30A
  • At maximum efficiency:
    • Speed: 4,905rpm
    • Current: 1.095A
    • Torque: 223.9g/cm
    • Output: 11.261W
    • Efficiency: 85.66%
  • At stall:
    • Current: 6A
    • Torque: 1,450g/cm
  • Options:
    • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
  • Speed: 5,800rpm
  • Current: 0.30A
  • Speed: 4,905rpm
  • Current: 1.095A
  • Torque: 223.9g/cm
  • Output: 11.261W
  • Efficiency: 85.66%
  • Current: 6A
  • Torque: 1,450g/cm
  • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
  • Quantity: 60 pieces
  • Gross weight: up to 13.8kg
  • Dimensions: 39 x 29 x 19cm
