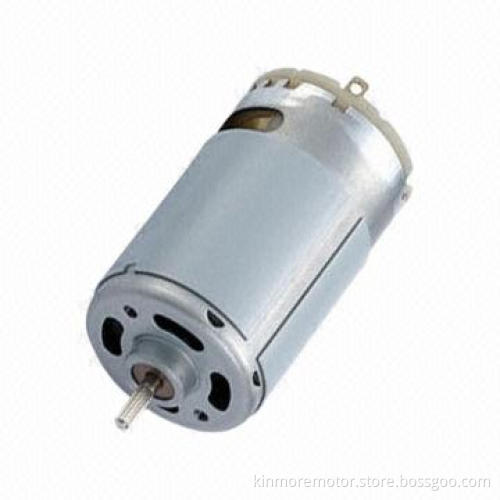

12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing
  • 12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing
  • 12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing
12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing
12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing

12V DC Motor, Suitable for Screwdrivers/Power Tools/Air Pumps/Models with 37 x 57mm Housing

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 36 x 57mm
    • Material: SECD
    • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling is available)
    • Way of commutation: carbon leaf brush system
    • Structure: 2-pole starter and 5-slot armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW, reversible
  • Performance:
    • Measuring conditions:
      • Rated voltage: 12V DC
      • Motor position: to be measured with motor horizontallyheld
      • Environmental temperature: 25 ±10°C
      • Environmental humidity: 65% ±20% RH
    • Electrical characteristics:
      • At initial stage after 30 seconds run-in
      • At no load:
      • Speed: 3,900 ±10%rpm
      • Current: 0.17A (maximum 0.28A)
    • At maximum efficiency:
    • Torque: 226.9g.cm
    • Speed: 3,311 ±10%rpm
    • Current: 0.96A (maximum 1.72A)
  • At stall:
  • Torque: 1502g.cm
  • Current: 5.37A (maximum 9.67A)
  • Motor housing (D x L): 36 x 57mm
  • Material: SECD
  • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling is available)
  • Way of commutation: carbon leaf brush system
  • Structure: 2-pole starter and 5-slot armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW, reversible
  • Measuring conditions:
    • Rated voltage: 12V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 25 ±10°C
    • Environmental humidity: 65% ±20% RH
  • Electrical characteristics:
    • At initial stage after 30 seconds run-in
    • At no load:
    • Speed: 3,900 ±10%rpm
    • Current: 0.17A (maximum 0.28A)
  • At maximum efficiency:
  • Torque: 226.9g.cm
  • Speed: 3,311 ±10%rpm
  • Current: 0.96A (maximum 1.72A)
  • Rated voltage: 12V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 25 ±10°C
  • Environmental humidity: 65% ±20% RH
  • At initial stage after 30 seconds run-in
  • At no load:
  • Speed: 3,900 ±10%rpm
  • Current: 0.17A (maximum 0.28A)
  • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
  • Mechanical characteristics:
  • Dimension drawing: see outline
  • End play: 0.05 to 0.55mm (maximum)
  • Class F magnet wire
  • Operating temperature: -10 to 60°C
  • Packaging:
  • Quantity: 60 pieces
  • Gross weight: up to 13.8kg
  • Dimensions: 39 x 29 x 19cm
