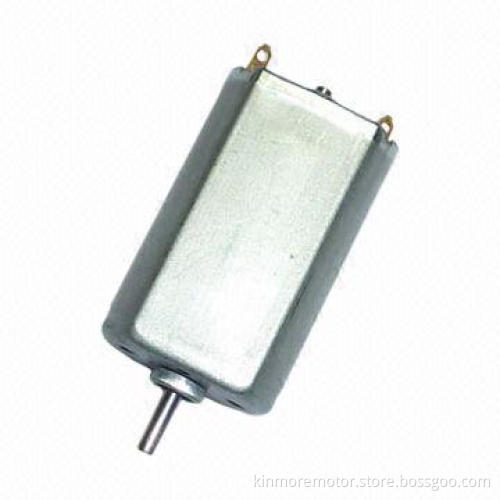

2.4V DC Small Electric Motor with Ø20.4 x 15.4 x 32.1mm Housing, Ideal for Printer and Toy

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Performance:

Rated voltage: 24V DC
At 23.7g.cm load:
- Speed: 7700rpm
- Current: 0.16A (maximum)
At stall:
- Current: 0.75A maximum
- Torque: 100g.cm min
Options:
- Shaft length, technical data like voltage, speed, torque,optional EMI and EMC suppression

Packaging details:

Motor housing (D x flat x L): Ø20.4 x 15.4 x 32.1mm

Material: SECD

Shaft: 2.0mm carbon steel (nickel-coated)

Way of commutation: metal brush system

Structures: 2 poles stators and 3 slots armature

Insulation: class F magnet wire

Rotation: CW/CCW and reversible

Rated voltage: 24V DC

At 23.7g.cm load:

At stall:

Options:

Shaft length, technical data like voltage, speed, torque,optional EMI and EMC suppression

Speed: 7700rpm

Current: 0.16A (maximum)

Current: 0.75A maximum

Torque: 100g.cm min

Shaft length, technical data like voltage, speed, torque,optional EMI and EMC suppression

Quantity: 350 pieces

Gross weight: 12.2kg

Dimensions: 41 x 27.5 x 12.5cm
