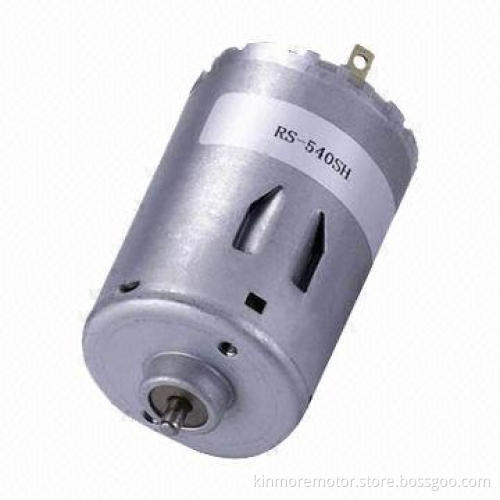

6V DC Motor with 35.8 x 50mm Housing, Suitable for Rechargeable Fans and RC Toys

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x L): 35.8 x 50mm
Material: SECD
Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling available)
Way of commutation: carbon leaf brush system
Structure: 2 poles starter and 3 slots armature
Insulation: class F magnet wire
Rotation: CW/CCW, reversible
Performance:
- Rated voltage: 6V DC
At no loading:
- Speed: 18,355rpm
- Current: 2.69A
At maximum efficiency:
- Speed: 14,302rpm
- Current: 7.91A
- Torque: 181g.cm
At stall:
- Current: 27.9A
- Torque: 819.74g.cm
Options:
- Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)

Packing:

Quantity: 60 pieces
Gross weight: 9.4kg
Size: 35.5 x 26.5 x 12.0cm

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloy commutator
Copper graphite brushes
Be-Cu leaf-brush commutating system
SECD round/flat shape housing
SECD end cap/PA66 + fiber end cap
Cylinder (self-aligning) sintered bush
155 degrees (class F) copper wire

Customization options:

OEM and customization are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechnical time constant
Resist intense vibrations
Zero-axial gap
Low-noise design
Fast response (small)
High-torque at a low-speed
PTC protection
Penolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Motor housing (D x L): 35.8 x 50mm

Material: SECD

Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling available)

Way of commutation: carbon leaf brush system

Structure: 2 poles starter and 3 slots armature

Insulation: class F magnet wire

Rotation: CW/CCW, reversible

Performance:

Rated voltage: 6V DC

At no loading:

Speed: 18,355rpm
Current: 2.69A

At maximum efficiency:

Speed: 14,302rpm
Current: 7.91A
Torque: 181g.cm

At stall:

Current: 27.9A
Torque: 819.74g.cm

Options:

Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)

Rated voltage: 6V DC

Speed: 18,355rpm

Current: 2.69A

Speed: 14,302rpm

Current: 7.91A

Torque: 181g.cm

Current: 27.9A

Torque: 819.74g.cm

Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)

Quantity: 60 pieces

Gross weight: 9.4kg

Size: 35.5 x 26.5 x 12.0cm

2-pole stator

Sr ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloy commutator

Copper graphite brushes

Be-Cu leaf-brush commutating system

SECD round/flat shape housing

SECD end cap/PA66 + fiber end cap

Cylinder (self-aligning) sintered bush

155 degrees (class F) copper wire

OEM and customization are available

With RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechnical time constant

Resist intense vibrations

Zero-axial gap

Low-noise design

Fast response (small)

High-torque at a low-speed

PTC protection

Penolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
