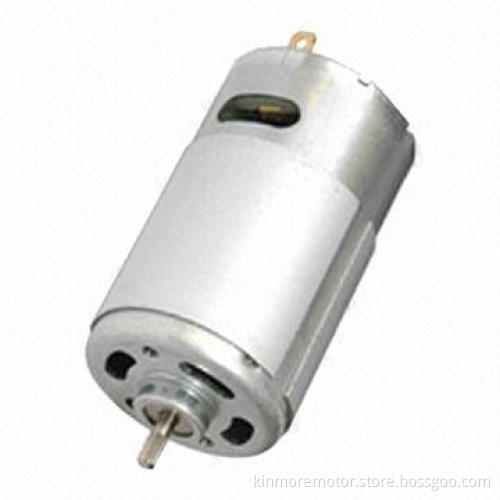

13V DC Micro Motor for Air Pumps, Vacuum Cleaners, Power Tools
  • 13V DC Micro Motor for Air Pumps, Vacuum Cleaners, Power Tools
13V DC Micro Motor for Air Pumps, Vacuum Cleaners, Power Tools

13V DC Micro Motor for Air Pumps, Vacuum Cleaners, Power Tools

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Features:
    • Insulation of armature: class F magnet wire
    • Brush type: precision metal brush
    • Stator and armature slots: 2 poles and 5 slots
    • Construction: with 2 captors and 2 chokes and 1 varistor
    • Bearing type: sintered bronze bearing
    • Optional: EMC/EMI suppression, cooling fan, shaft shape
    • Size range (D): 6 to 52mm
    • Voltage range: 1.5 to 42V DC
    • Rectify: 100, 110, 220, 230, 240V AC and more
    • Speed range: 1 to 30,000rpm
    • Stall torque: 5g.cm to 30kg.cm
  • Specifications:
    • Rated voltage: 13V DC
    • Motor position: to be measured with motor horizontallyheld
    • Environmental temperature: 25 ± 10°C
    • Environmental humidity: 65% ± 20% RH
    • Electrical characteristics (at initial stage after 30 secondsrun-in):
      • At no loading
      • Speed: 8,350 ± 10%rpm
      • Current: 0.42A (maximum 0.68A)
    • At maximum efficiency:
      • Torque: 325.5g.cm
      • Speed: 7,197 ± 10%rpm
      • Current: 2.63A (maximum 4.7A)
    • At stall:
      • Torque: 2358g.cm
      • Current: 16.38A (maximum 29.5A)
    • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
  • Mechanical characteristics:
    • End play: 0.05 to 0.35mm (maximum)
    • Class F magnet wire EMI filter: 2 chokes and 2 caps and 1varistor
    • Operating temperature: -10 to +60°C
    • Typical applications: EPB, air pump, door locks, ride-on car,RC model, cordless power tools
  • Applications:
    • Home appliance
    • Power Tools
    • Toys and models
    • Precision instrument
    • Office equipment
    • Personal care product
    • Automotive
    • Audio and visual equipment and more
  • Insulation of armature: class F magnet wire
  • Brush type: precision metal brush
  • Stator and armature slots: 2 poles and 5 slots
  • Construction: with 2 captors and 2 chokes and 1 varistor
  • Bearing type: sintered bronze bearing
  • Optional: EMC/EMI suppression, cooling fan, shaft shape
  • Size range (D): 6 to 52mm
  • Voltage range: 1.5 to 42V DC
  • Rectify: 100, 110, 220, 230, 240V AC and more
  • Speed range: 1 to 30,000rpm
  • Stall torque: 5g.cm to 30kg.cm
  • Rated voltage: 13V DC
  • Motor position: to be measured with motor horizontallyheld
  • Environmental temperature: 25 ± 10°C
  • Environmental humidity: 65% ± 20% RH
  • Electrical characteristics (at initial stage after 30 secondsrun-in):
    • At no loading
    • Speed: 8,350 ± 10%rpm
    • Current: 0.42A (maximum 0.68A)
  • At maximum efficiency:
    • Torque: 325.5g.cm
    • Speed: 7,197 ± 10%rpm
    • Current: 2.63A (maximum 4.7A)
  • At stall:
    • Torque: 2358g.cm
    • Current: 16.38A (maximum 29.5A)
  • Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal
  • At no loading
  • Speed: 8,350 ± 10%rpm
  • Current: 0.42A (maximum 0.68A)
  • Torque: 325.5g.cm
  • Speed: 7,197 ± 10%rpm
  • Current: 2.63A (maximum 4.7A)
  • Torque: 2358g.cm
  • Current: 16.38A (maximum 29.5A)
  • End play: 0.05 to 0.35mm (maximum)
  • Class F magnet wire EMI filter: 2 chokes and 2 caps and 1varistor
  • Operating temperature: -10 to +60°C
  • Typical applications: EPB, air pump, door locks, ride-on car,RC model, cordless power tools
  • Home appliance
  • Power Tools
  • Toys and models
  • Precision instrument
  • Office equipment
  • Personal care product
  • Automotive
  • Audio and visual equipment and more
