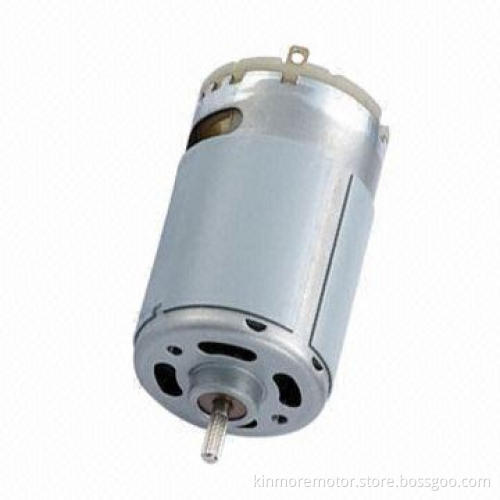

12V DC Micro Motor with 36mm Diameter Housing for Vacuum Cleaners/Power Tools/Fans/Car Locks

Get Latest Price

Payment Type:: T/T and L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and L/C at Sight

Product Description

Specifications:

Dimensions: 35.8 x 57mm
Shaft diameter: 3.175mm
Carbon bushes an CCW/CW for optional
OEM orders are welcomed
Rated voltage: 12V DC
Motor Position: to be measured with motor horizontallyheld.
Environment temperature: 25 to ±10
Environment humidity: 65 to ±20% RH

Electrical characteristics (at initial stage after 30 secondsrun-in):

At no load:

Speed: 18,000 ±10%rpm

Current: 1.25A (maximum 2.0A)

Dimensions: 35.8 x 57mm

Shaft diameter: 3.175mm

Carbon bushes an CCW/CW for optional

OEM orders are welcomed

Rated voltage: 12V DC

Motor Position: to be measured with motor horizontallyheld.

Environment temperature: 25 to ±10

Environment humidity: 65 to ±20% RH

At max efficiency:

Torque: 453.2g.cm

Speed: 15,669 ±10%rpm

Current: 8.41A (maximum 15.1A)

At stall:

Torque: 3,500g.cm

Current: 56.49A (maximum 84.7A)

Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal

Dimension drawing: see the outline

End play: 0.05 to 0.55mm (maximum)

Class F magnet wire

Operating temperature: -10 to 60

Constructions of motor:

2-pole stater

SR ferrite permanent magnet

3, 5, 7, 8, 9, 12 slots armature

Silicone-steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commutates

Copper-graphite brushes

Cu leaf brush commutating system

SECD round/flat-shaped housing

SECD end cap/PA66 + fiber end cap

Cylinder (self-aligning) sintered bush

155 degrees (class F) copper wire

Packing:

Quantity: 100 pieces per carton

Carton size: 40.0 x 36.5 x 13.0cm

Net weight: 16kg
